Brown Davis Long Range Tank for the Next Gen Ford Ranger Raptor
On sale

Next Gen Ford Ranger Raptor (2022-Current) Long Range Tank - Brown Davis

Brown Davis

$1,690.00 AUD $1,699.00 AUD You save $9.00 AUD

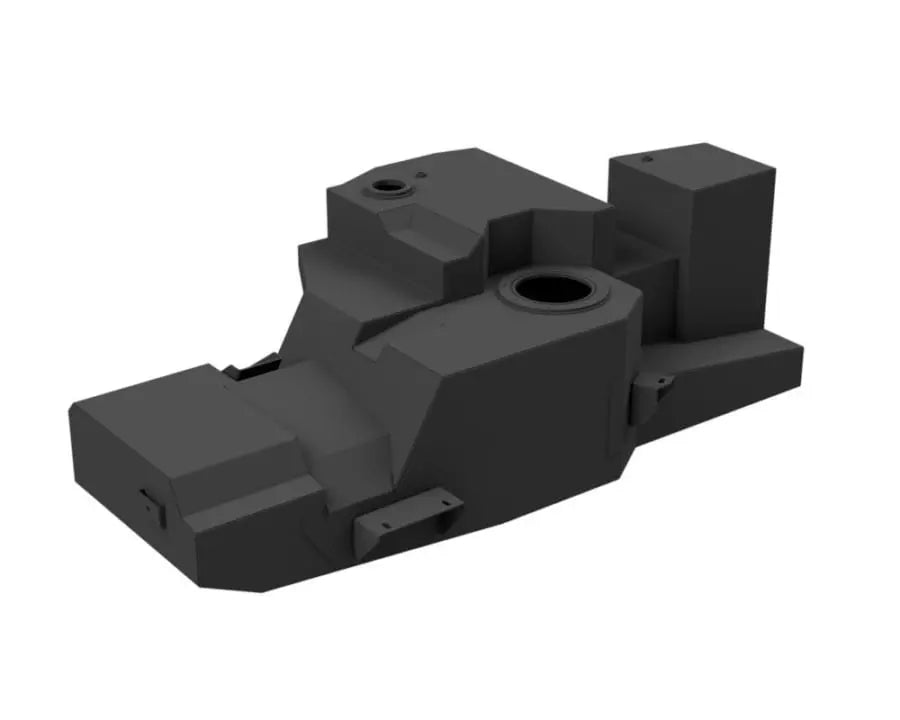

This 140L Next Gen Raptor Long Range Fuel Tank tank is engineered as an all-in-one substitute for the original fuel tank, offering a significantly larger fuel capacity.
Overview
  • Angled design at the front to minimise impact and boost clearance for crossing obstacles
  • Built-in baffles both longitudinally and laterally to mitigate fuel movement and reinforce the tank's structure
  • Reinforced mounting brackets featuring double-thick pads to evenly distribute the weight of the tank
  • Compatible fuel pump sender flange that allows for the reuse of the vehicle’s existing equipment
  • Swirl pot construction to efficiently gather fuel at the suction point
  • Equipped with a rollover valve and an expansion chamber to manage fuel expansion and allow for proper venting
  • Designed with a high-flow breather to expedite refuelling and minimise premature pump shutoff
  • Incorporates a filler tube that connects directly to the vehicle's original fuel inlet
  • Utilizes cushion clamps to secure fuel lines, preventing any damage or bending
  • Features a magnetic drain plug that is positioned horizontally and sits flush with the tank to avoid external damage
Brand
Brown Davis
Product type
Performance
SKU
FRAP22R1

Full description, fitment and specifications

Fitment and delivery

Check the fitment details in the product description against your vehicle before ordering. Model, year, variant and existing modifications can affect fitment.

Product details

What to know before ordering

Description, fitment and specifications
This 140L Next Gen Raptor Long Range Fuel Tank tank is engineered as an all-in-one substitute for the original fuel tank, offering a significantly larger fuel capacity. It is designed to replace the factory fuel tank, providing an easy, direct bolt-in method for enhancing fuel storage.

Some Key Features of the Brown Davis Ford Raptor Long Range Fuel Tank

  • Angled design at the front to minimise impact and boost clearance for crossing obstacles
  • Built-in baffles both longitudinally and laterally to mitigate fuel movement and reinforce the tank's structure
  • Reinforced mounting brackets featuring double-thick pads to evenly distribute the weight of the tank
  • Compatible fuel pump sender flange that allows for the reuse of the vehicle’s existing equipment
  • Swirl pot construction to efficiently gather fuel at the suction point
  • Equipped with a rollover valve and an expansion chamber to manage fuel expansion and allow for proper venting
  • Designed with a high-flow breather to expedite refuelling and minimise premature pump shutoff
  • Incorporates a filler tube that connects directly to the vehicle's original fuel inlet
  • Utilizes cushion clamps to secure fuel lines, preventing any damage or bending
  • Features a magnetic drain plug that is positioned horizontally and sits flush with the tank to avoid external damage
Please note these high quality Australian-made products are in high demand, so expect up to 4-6 weeks lead time before receiving your Next Gen Raptor long range tanks from Brown Davis - check with us for current lead times

Specifications

PART NUMBER: FRAP22R1
TANK TYPE: REPLACEMENT
CAPACITY: 140 LITRE
FILLER POINT: Retains standard filler point
FUEL SUPPLY METHOD: STANDARD
TANK LOCATION: Replaces vehicles standard tank
FITTING TIME: 2-3 HOURS
MODIFICATIONS: N/A
