Next Gen Ford Ranger Roof Rack (Slimline II / Low Profile)

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a limited lifetime warranty*

Drilling is not required for WildTrak model with this Ford Ranger Roof Rack.

KRFR020T - Ford Ranger T6.2 Wildtrak/Raptor Double Cab (2022-Current) Slimline II Roof Rack Kit / Low Profile

Consisting of:
1x FAFR010 - Ford Ranger DC(2022-Curr) Foot Rails / Low Profile
1x RRSTD07 - SLII Tray - 1255mm(W)X1358mm(L)

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 30kg

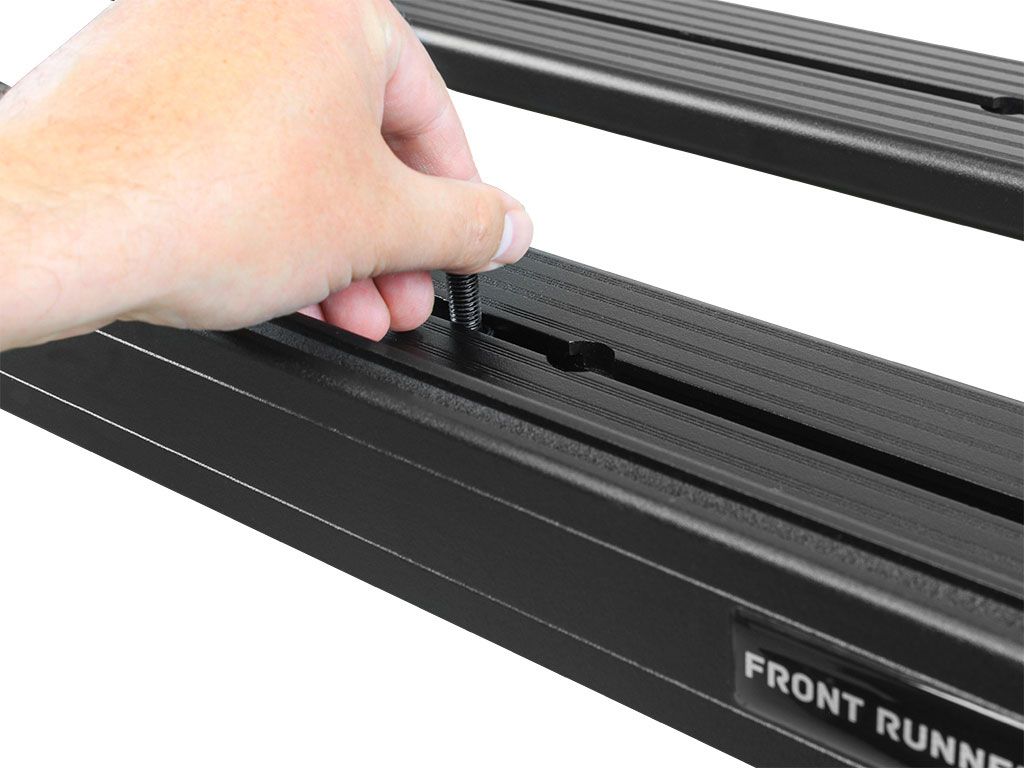

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.ls. For non WildTrak models, drilling into the plastic trim is required for installation.

Note: Under-rack accessories and some side-mount accessories are not suited for low-profile foot rails such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets.

Shipping Dimensions:
Width: 440mm (17")
Length: 1730mm (68")
Height: 300mm (12")

Shipping Weight:
Weight: 30.27kg (67lbs)
