Front Runner

Next Gen Ford Ranger Roof Rack Kit (Slimsport)

Next Gen Ford Ranger Roof Rack Kit (Slimsport)

Regular price $988.28 AUD
Regular price $1,199.00 AUD Sale price $988.28 AUD
Sale Sold out
Tax included.
40" Light Bar (inc. Harness)

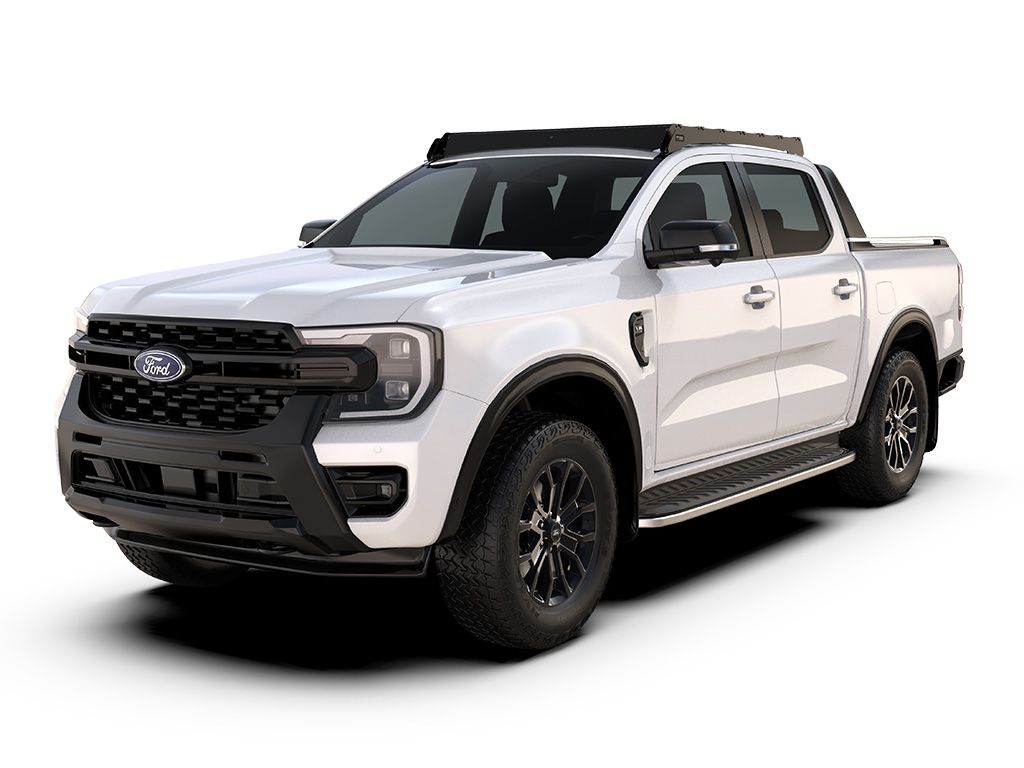

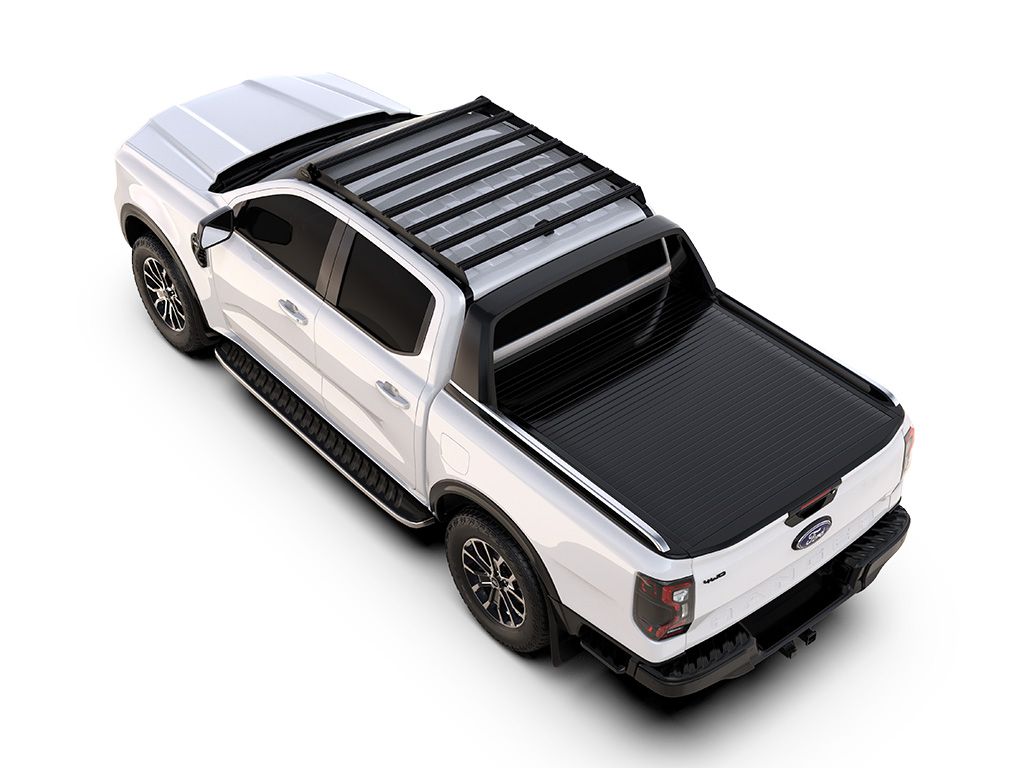

NXG is proud to partner with Front Runner to bring our fellow Next Gen Ford owners the Next Gen Ford Ranger Roof Rack Kit (Slimsport).

FORD RANGER ROOF RACK DETAILS

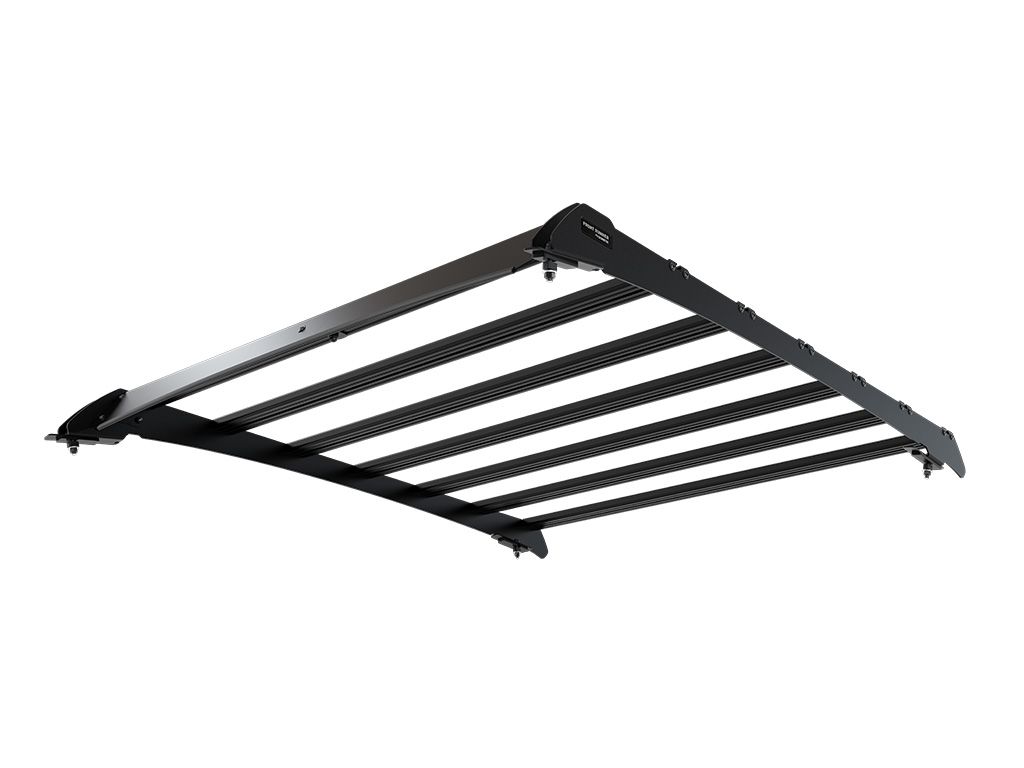

  • This low-profile flat deck Slimsport rack has a load-carrying area of 1468mm (57.8") x 1233mm (48.5").
  • The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
  • The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
  • Easily add on the Slimsport/Slimpro Van Side Mount Accessory Bracket / Small – by Front Runner for most Front Runner side mount accessories (sold separately).

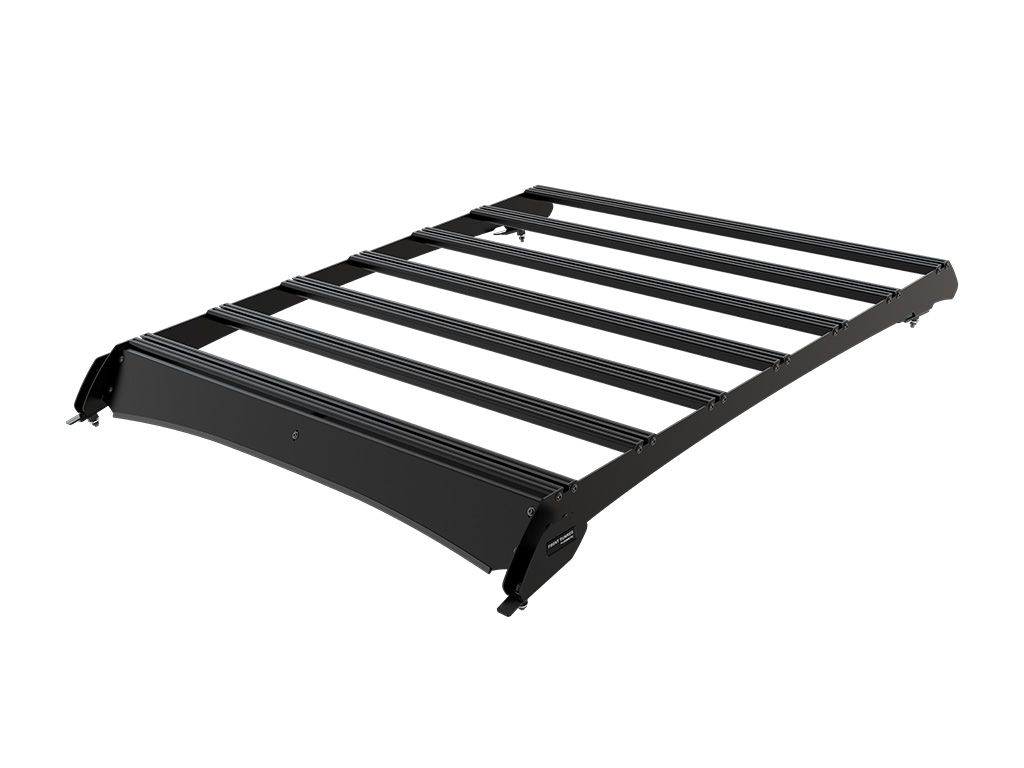

  • The included standard full fairing with rubber edge trim, makes the rack ultra-quiet.

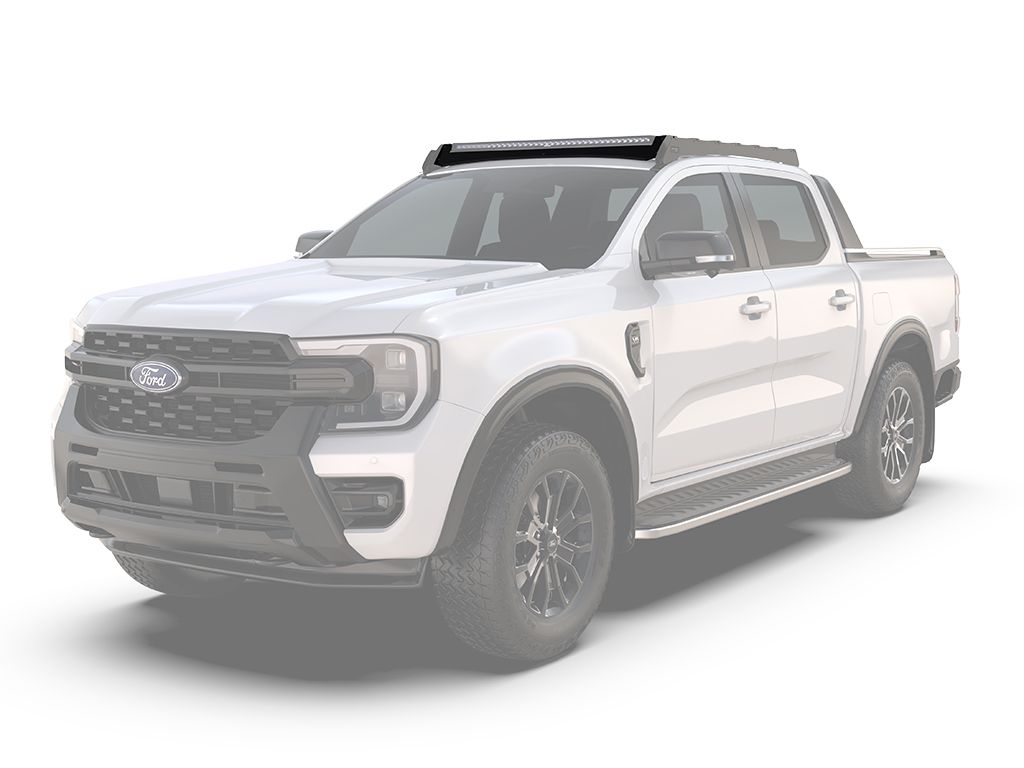

  • Need a lightbar? The optional lightbar fairing Ford Ranger T6.2 (2022-Current)/Volkswagen Amarok (2023-Current) Double Cab Slimsport Rack 40" Light Bar Wind Fairing (sold separately) has a 40" cutout to allow use of 40" LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount (sold separately).
  • Fitment guide and all mounting hardware included.
  • 6"/T30 Torx Allen Key for Slimsport Rack is required for installation.
  • Note: Drilling required.
  • Note: Under Rack Tables and some side mount accessories such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport Tray range.
All Front Runner Racks are backed by a Limited Lifetime Warranty*


Consisting of:
1x KSFR005 - Ford Ranger T6 Double Cab (22-Curr)Slimsport Roof Rack Kit
1x RRAC251 - Ford Ranger T6 Dbl Cab(22-Curr)SlimSport Wind Fairing
1x RRAC971 - Protection Strip

Material Used in Ford Ranger Roof Rack:
Black epoxy powder - coated T6 aluminium
High strength steel

Assembled Tray Dimensions:
1468mm (57.8") L x 1233mm (48.5") W x 139mm (5.5") H

Approximate Installed Weight: 27.86kg (61.42lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.

Shipping Dimensions:
Width: 330mm (13")
Length: 1700mm (67")
Height: 210mm (8")

Shipping Weight:
Weight: 27.86kg (61lbs)

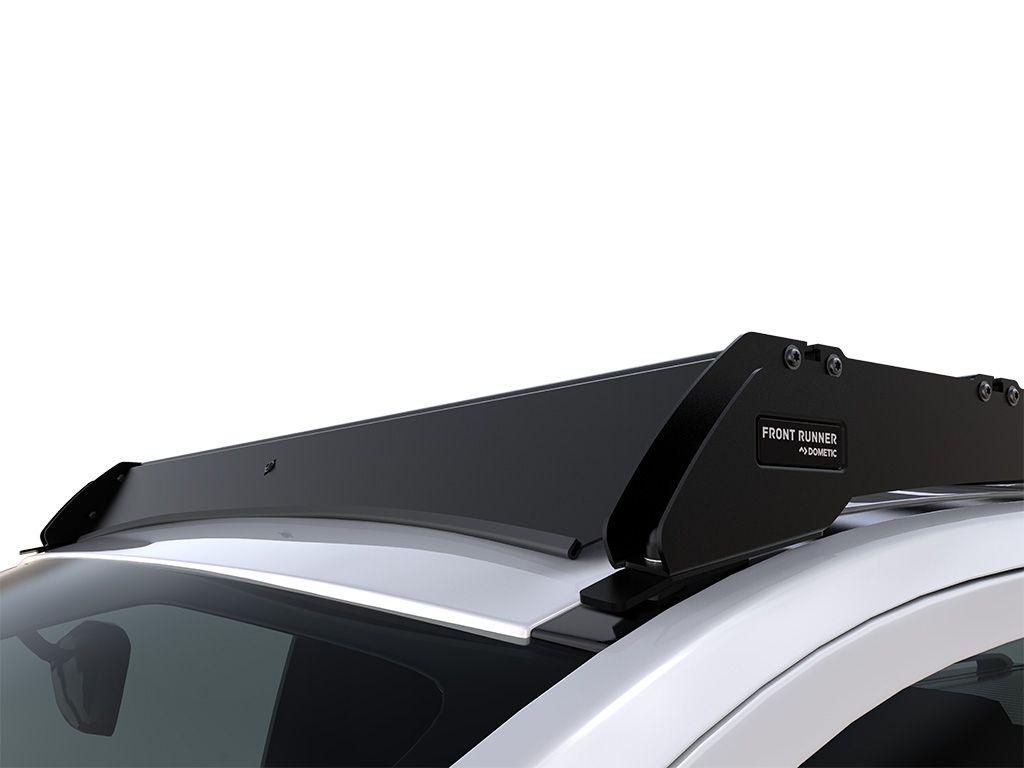

Be more economical when hauling gear and add light to your Ford Ranger T6.2 / Volkswagen Amarok Double Cab with this specially-designed wind fairing. The Slimsport Rack Wind Fairing channels air fluidly over your Slimsport Roof Rack (and the accessories loaded on it).

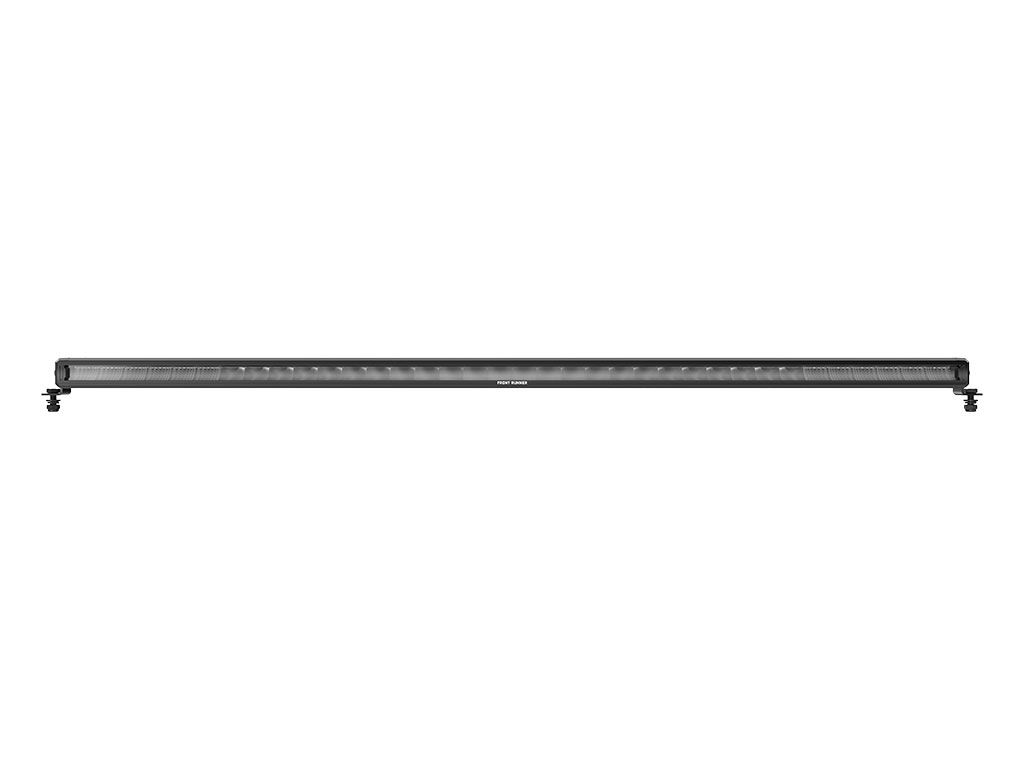

This particular fairing is specifically designed to pair with the 40” Front Runner Light Bar because adventures don't end when the sunlight does.
