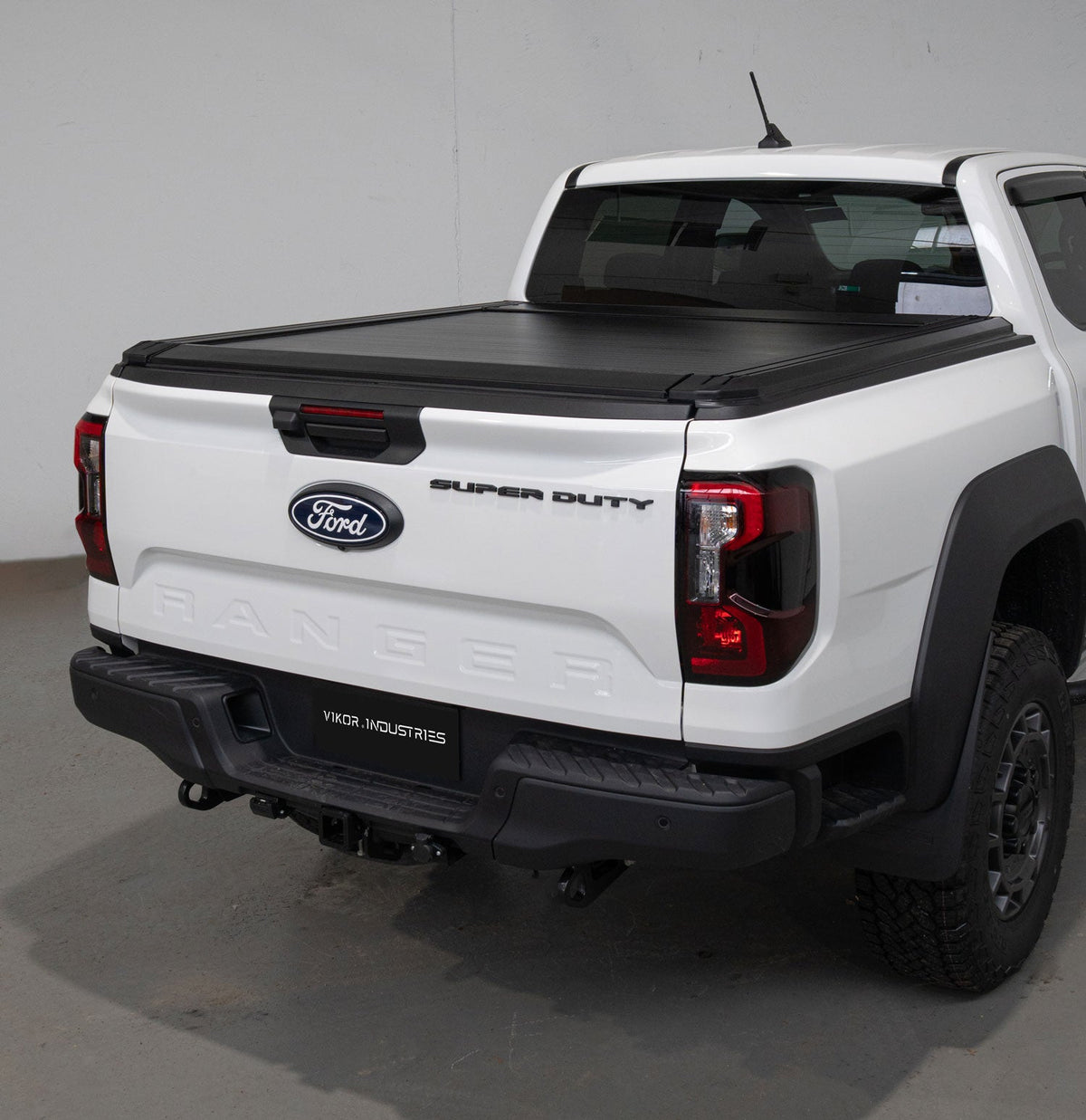

Ford Ranger Super Duty (2025-Current) Electric Roller Shutter - VIKOR
An electric roller shutter for the Ford Ranger Super Duty (2025-Current). The slats roll into a canister behind the cab, so the load area locks at the press of a button and there is no lid to lift…
Overview
- Electric operation from your factory key or the VIKORES mobile app, with open, close and pause
- Opens or closes in around 9 seconds, adjustable in the app
- Lightweight aluminium slats running on self-lubricated nylon rollers
- Clutch geared motor in a compact canister that extends about 33cm from the inside of the tub
- Long LED strip inside the canister with low, medium and high settings
- Jamming prevention, plus VIKOR's own sealing and water drainage system
- Raised double channel track, which takes most aftermarket tub accessories and the VIKOR heavy duty cross bars
- Optional cabin or tub-mounted switches can be fitted at installation
- Backed by a 12-month VIKOR warranty
- Brand
- VIKOR INDUSTRIES
- Product type
- Electric Roller Shutter
- SKU
- VKESF22DC
Fitment and delivery
Check the fitment details in the product description against your vehicle before ordering. Model, year, variant and existing modifications can affect fitment.
Product details
What to know before ordering
Description, fitment and specifications
An electric roller shutter for the Ford Ranger Super Duty (2025-Current). The slats roll into a canister behind the cab, so the load area locks at the press of a button and there is no lid to lift off and store when you need the tub open. That is the practical difference between a shutter and a hard lid. VIKOR build it from lightweight aluminium on self-lubricated nylon rollers and engineer it in Perth, Western Australia.
What vehicles does this fit?
| Make | Model | Variant | Body | Years | Fit |
|---|---|---|---|---|---|
| Ford | Ranger Super Duty | - | Pick-Up with the factory tub | 2025-Current | Direct fit |
| Ford | Ranger Super Duty | - | Cab Chassis with a tray or canopy | 2025-Current | Not suitable, the shutter needs the factory tub |
VIKOR list this shutter for the Ford Ranger Super Duty, part VKESF22DC. They build a separate shutter for each vehicle in the range.
Key features
- Electric operation from your factory key or the VIKORES mobile app, with open, close and pause
- Opens or closes in around 9 seconds, adjustable in the app
- Lightweight aluminium slats running on self-lubricated nylon rollers
- Clutch geared motor in a compact canister that extends about 33cm from the inside of the tub
- Long LED strip inside the canister with low, medium and high settings
- Jamming prevention, plus VIKOR's own sealing and water drainage system
- Raised double channel track, which takes most aftermarket tub accessories and the VIKOR heavy duty cross bars
- Optional cabin or tub-mounted switches can be fitted at installation
- Backed by a 12-month VIKOR warranty
Security is the usual reason people buy one, but the day-to-day reason is that it never leaves you carrying a lid. A hard lid gives you a flat surface and a storage problem the first time you need to load something tall. A shutter rolls out of the way and stays with the vehicle.
Specifications
| Operation | Electric, with open, close and pause |
| Control | Factory key or VIKORES mobile app |
| Cycle time | Around 9 seconds to fully open or close, adjustable in the app |
| Material | Lightweight aluminium with self-lubricated nylon rollers |
| Canister | Extends approximately 33cm from the inside of the tub |
| Lighting | LED strip inside the canister, three-stage |
| Track | Raised double channel |
| Load | VIKOR recommend a dynamic load of no more than 75kg with the Ford factory J-brace fitted |
| Installation | 4 to 5 hours on a clean tray, plus key coding |
| Weight | 34kg to 45kg, depending on the vehicle |
| Warranty | 12 months |
| Fitment | Ford Ranger Super Duty factory tub, 2025 onwards |
| Part number | VKESF22DC |
What's included
- Electric roller shutter with canister and side rails
Not included: installation, cabin or tub-mounted switches, sports bar brackets, cross bars and tub liner.
Frequently asked questions
How do you operate it?
From your factory key or from the VIKORES mobile app, which will open, close or pause the shutter. A full cycle takes around 9 seconds and the speed is adjustable in the app. If you would rather have a physical switch, cabin or tub-mounted switches can be added at the time of professional installation. Tell your installer before the job starts, because it is a wiring decision rather than an afterthought.
Will it work with a sports bar or cabin guard already fitted?
VIKOR state that factory sports bars and other tub accessories can be used with the raised double channel shutter, and that those accessories will sit roughly 30mm to 35mm higher once the shutter is in. VIKOR also require the Ford factory J-brace to be fitted. Budget for the sports bar to come off and go back on, since VIKOR quote that as extra time on top of the 4 to 5 hour install.
How much weight can sit on it?
VIKOR recommend a dynamic load of no more than 75kg with the Ford factory J-brace installed. They also state that off-road use and overloading can scratch or fault the shutter, and that damage from either voids the manufacturer warranty. Treat it as a secure lid, not a roof rack.
Can I still carry long loads?
Yes. The shutter pauses part way rather than being only open or shut, so a load that runs over the tailgate sits under a partly closed shutter. That is something a hard lid cannot do without leaving the lid at home.
Does it fit a cab chassis with a tray?
No. The shutter mounts to the side rails of the factory tub, so it needs a pick-up body. A cab chassis Super Duty running a tray or a canopy has nothing for the rails to bolt to. Contact us and we will look at what suits that setup instead.
Is it covered by a warranty?
Yes. VIKOR back every Electric Roller Shutter with a 12-month warranty. They are engineered by the VIKOR team in Perth, Western Australia, so warranty support is local rather than run through an overseas importer.
