Ford Ranger Raptor Next-Gen (2022+) ARB 4L Air Tank Mount - Pirate Camp Co

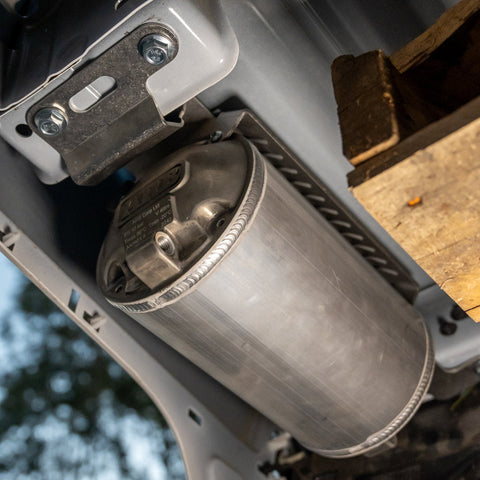

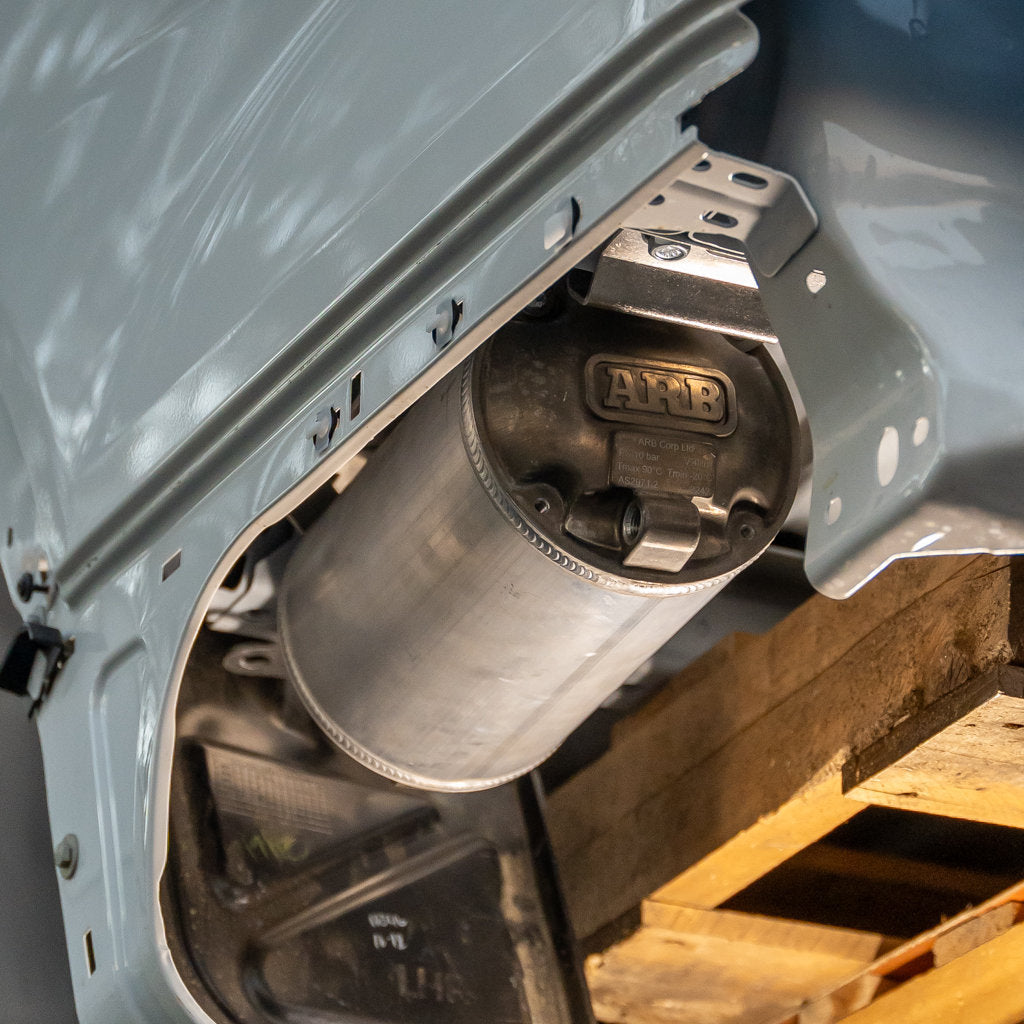

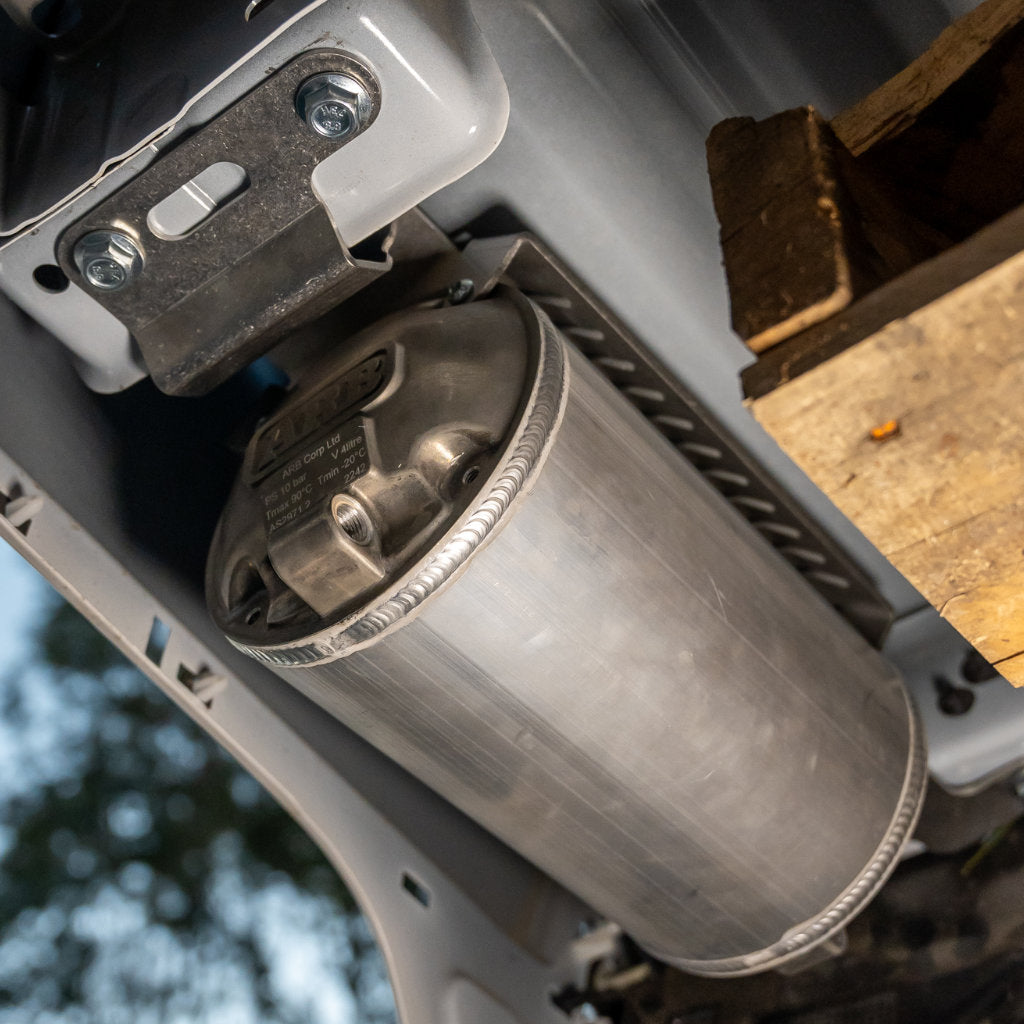

Pirate Camp Co.A bracket that hangs an ARB 4L air tank under the tub, in the dead space behind the wheel arch. Keeps the tank out of the tray, out of the cabin and off your canopy floor. Pick the side that suits your existing plumbing and exhaust routing.
What vehicles does this fit?
| Make | Model | Variant | Body | Years | Fit |
|---|---|---|---|---|---|
| Ford | Ranger Raptor (P703) | - | Dual Cab | 2022-Current | Direct fit |
| Volkswagen | Amarok NF | - | Dual Cab | 2023-Current | Direct fit |
| Ford | Everest Next Gen (U704) | - | Wagon | 2022-Current | Does not fit |
Why mount the tank under the tub
If you have already fitted a twin compressor under there, this is the matching piece. Tank and compressor sit together, plumbed short, and the whole system stays out of sight. It also means the tank is not eating cargo space you actually use, which is the usual reason an air tank ends up strapped to a tray corner.
Build and finish

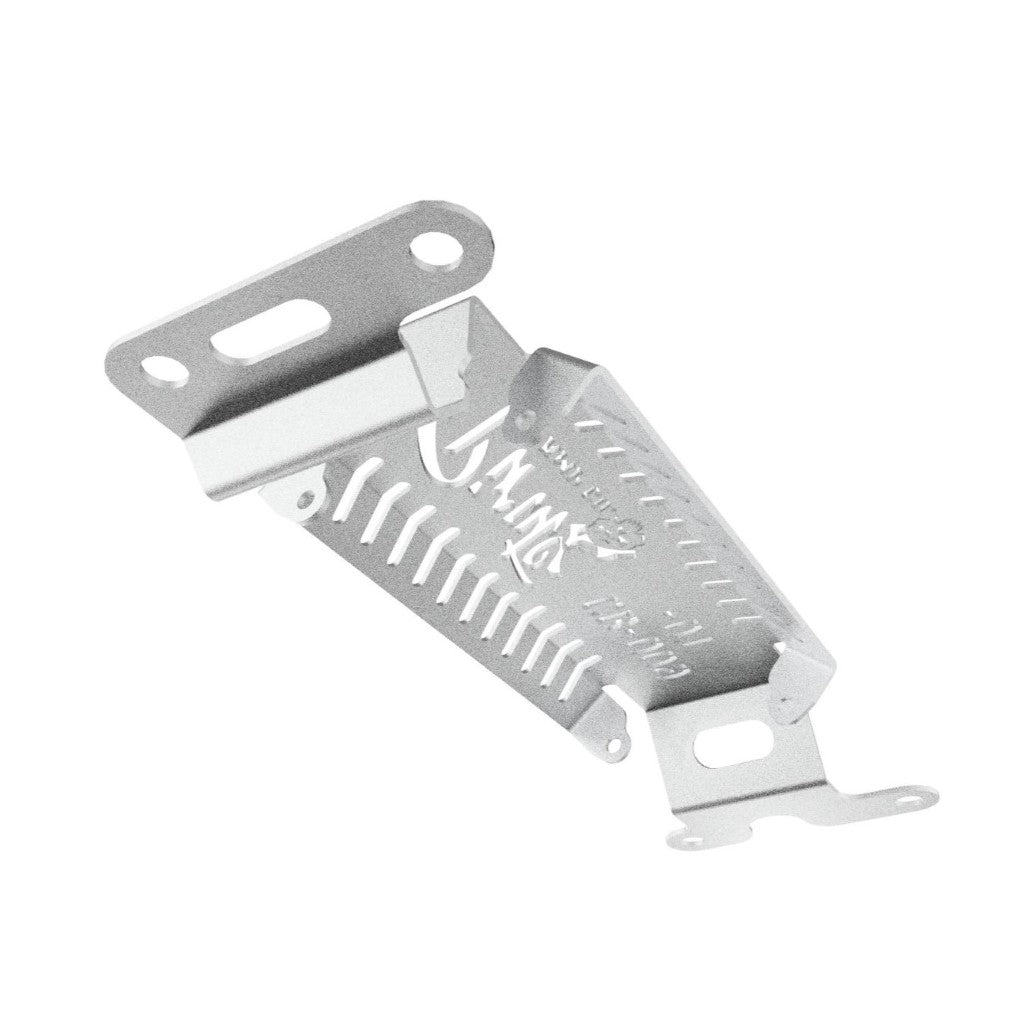

- 304 grade stainless steel
- Precision laser cut and CNC folded
- Full bolt in using factory bolt holes and captive nuts, with no drilling, cutting or modification
- Australian made and owned, per Pirate Camp Co
What's included

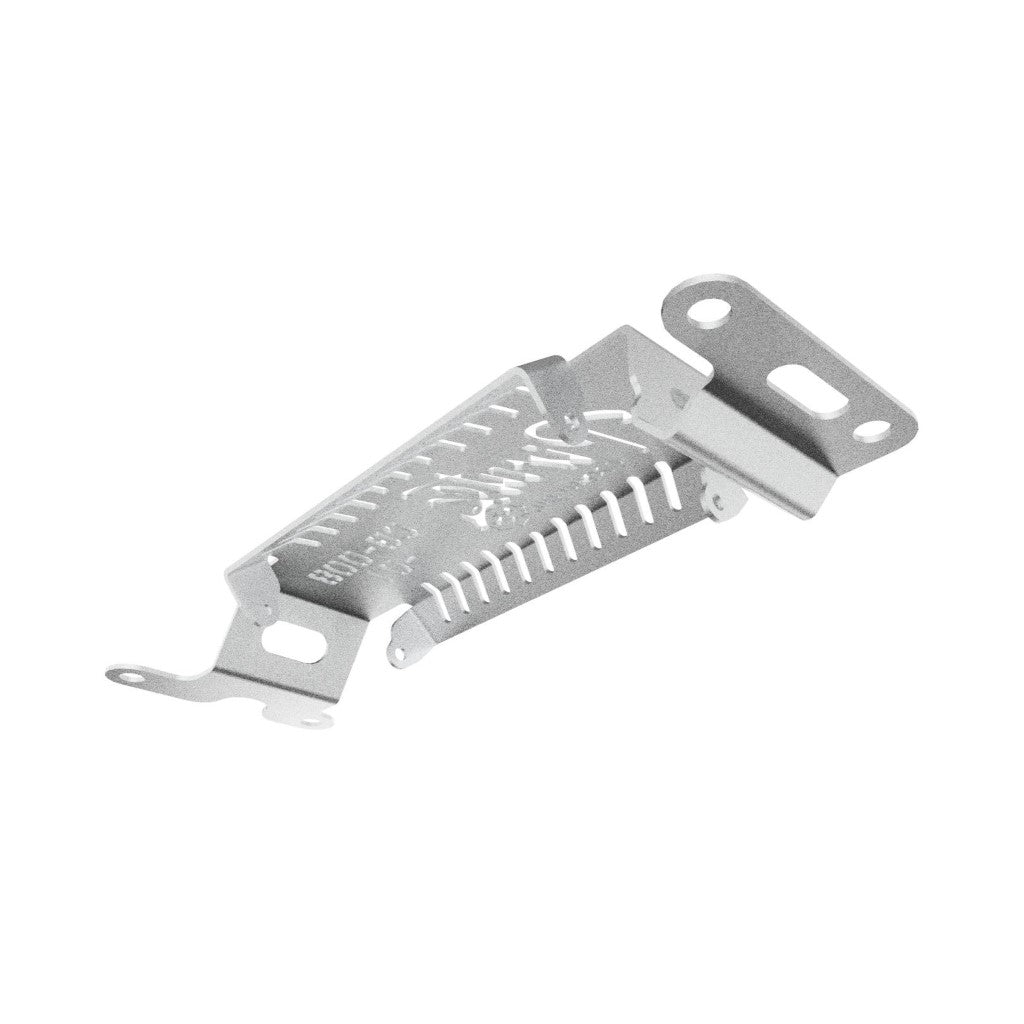

- One ARB 4L air tank under-tub mount, driver or passenger side as selected
Not included: the ARB air tank, fittings, hose and any plumbing hardware. This is the bracket only.
Components you may need to finish the install
Pirate Camp Co list the following as the usual companions for a complete under-tub air system. None of it comes with the bracket.
- Pirate Camp Co under-tub ARB twin air compressor mount, Raptor only
- Pirate Camp Co loaded tub switch panel, with or without the factory roller shutter
- Pirate Camp Co behind the taillight filter relocation bracket
- ARB twin air compressor, part no. CKMTA12
- Two ARB 90 degree JIC-4 elbow fittings, part no. 0740104
- One ARB US Std. JIC-4 hose coupling, part no. 0740107
- Two ARB 1/4 NPT (M) to JIC-4 adapters, part no. 0740101
- 2m of ARB JIC-4 reinforced hose, part no. 0740205
- 0.5m of ARB JIC-4 reinforced hose, part no. 0740202
- Two 6mm push-in fittings and two 6mm push-in bulkhead fittings
- 1.5m of 6mm hose
Frequently asked questions
Which air tank does it suit?
It is made for the ARB 4L air tank. Tank diameter and mounting band spacing vary between brands, so a similar looking 4L tank from another manufacturer is not a safe assumption. Measure your own tank against the bracket if you are running anything other than the ARB unit.
Does fitting this require drilling?
No. Pirate Camp Co state it is a full bolt in job using factory bolt holes and captive nuts, with no drilling, no cutting and no modifications.
Will it clear my exhaust?
The bracket is offered for either side so you can pick the one that suits your exhaust routing. On a vehicle with an aftermarket exhaust or a long range tank, check clearance physically before you commit. Heat soak into a pressurised tank is worth avoiding even where there is nominal clearance.
Can I fit it with the compressor already mounted?
On the Raptor, yes. Pirate Camp Co list their under-tub ARB twin air compressor mount as the companion part, and that mount is Raptor only. The two share the space rather than competing for it, and the plumbing runs short between them, which cuts the number of joins where a system leaks down overnight.
