Next Gen Ford Ranger (2022+) Grille Light Bar Wiring Harness - Pirate Camp Co

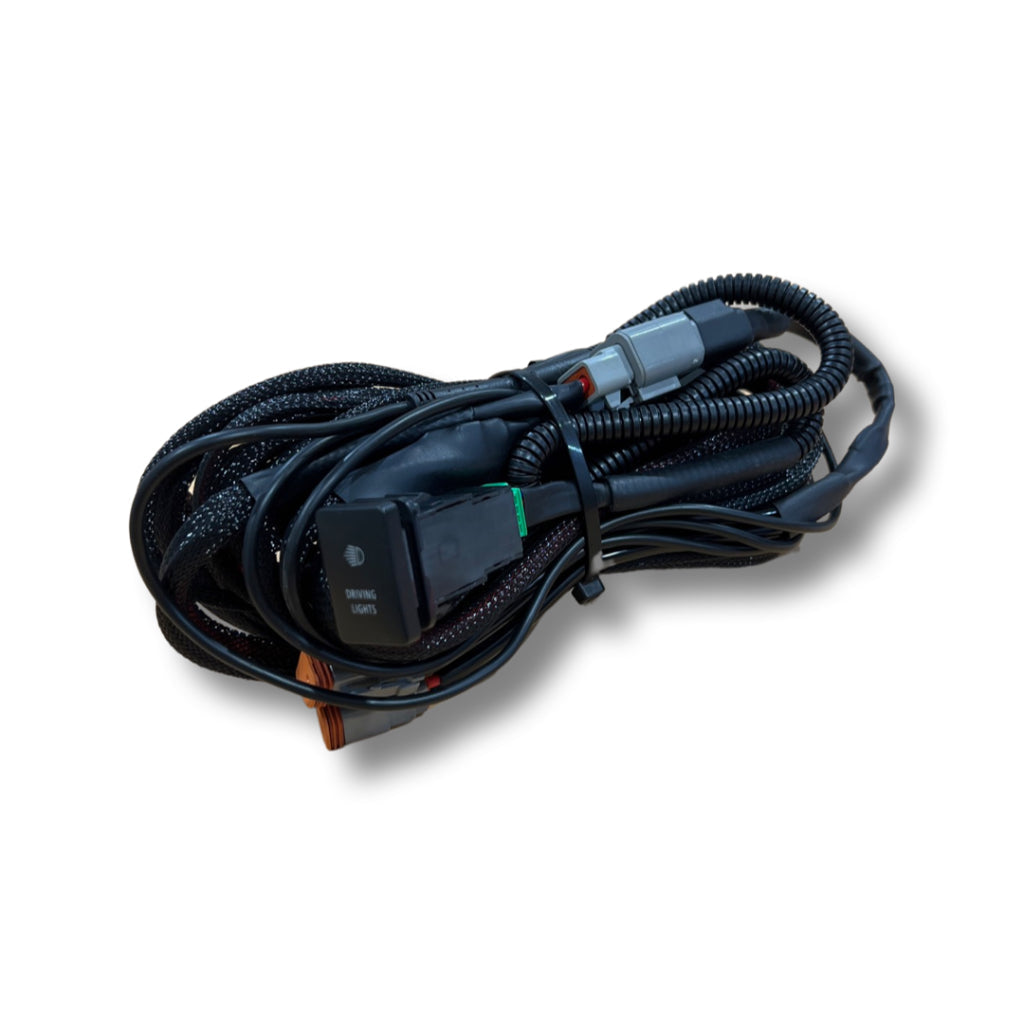

A plug and play harness for running dual light bars behind the Next Gen Ford Ranger (P703) grille. Pirate Camp Co state it is sourced from a local auto electrician and designed specifically for the RA Ford Ranger,…
Overview
- 12V DC 40A switching relay
- UV rated insulation
- Light bar connectors
- Toyota short spotlight push switch
- Extra crimp connector for the factory wiring loom
- Brand
- Pirate Camp Co.
- Product type
- Electrical
- SKU
- P-1861
Fitment and delivery
Check the fitment details in the product description against your vehicle before ordering. Model, year, variant and existing modifications can affect fitment.
Product details
What to know before ordering
Description, fitment and specifications
A plug and play harness for running dual light bars behind the Next Gen Ford Ranger (P703) grille. Pirate Camp Co state it is sourced from a local auto electrician and designed specifically for the RA Ford Ranger, so the connectors suit the factory loom instead of needing scotch locks and hope.
What vehicles does this fit?
| Make | Model | Variant | Body | Years | Fit |
|---|---|---|---|---|---|
| Ford | Next Gen Ranger (P703) | XLT, Sport | Dual Cab | 2022-Current | Direct fit |
| Ford | Next Gen Ranger (P703) | Premium Pack, Platinum | Dual Cab | 2022-Current | Does not fit |
| Ford | Ranger Super Duty | - | All | 2025-Current | Does not fit |
| Ford | Ranger PX2/PX3 | - | All | 2015-2022 | Does not fit |
Specs
- 12V DC 40A switching relay
- UV rated insulation
- Light bar connectors
- Toyota short spotlight push switch
- Extra crimp connector for the factory wiring loom
Read this before ordering
Pirate Camp Co state it suits XLT and Sport variants only. It does not suit the Premium Pack or Platinum models. Check your trim first.
What is included
- Plug and play dual light bar harness with relay and switch
- Extra crimp connector for the factory loom
Not included: the light bars, and the behind-the-grille bracket kit. Both are sold separately.
Frequently asked questions
Does it suit the Wildtrak or Platinum?
Pirate Camp Co state this harness suits XLT and Sport variants only, and specifically not the Premium Pack or Platinum. The factory loom and connectors differ on the higher specification vehicles. Check your trim and your option packs before ordering, because this is the most common mistake on this part.
Is it really plug and play?
It uses connectors that suit the factory loom rather than requiring you to cut into it, which is what plug and play means here. There is still a 40A relay to mount, a switch to locate and the harness to route to the light bars. It removes the guesswork, not the installation.
Do I still need the grille bracket kit?
Yes, if you are mounting the lights behind the grille. The harness handles the wiring and the bracket kit handles the mounting, and they are sold separately so you can buy either on its own. The light bars themselves are not included with either part.
What switch comes with it?
A short Toyota spotlight push switch, plus an extra crimp connector for the factory wiring loom. If you would rather run the lights from a dash switch cluster, Pirate Camp Co list cluster panels for the Ranger and Everest separately, including versions for the 10 inch and 12 inch screens.
