Ford Ranger Next-Gen (2022-Current) GEN3 Canopy Crossbar Rack Kit ST - EGR

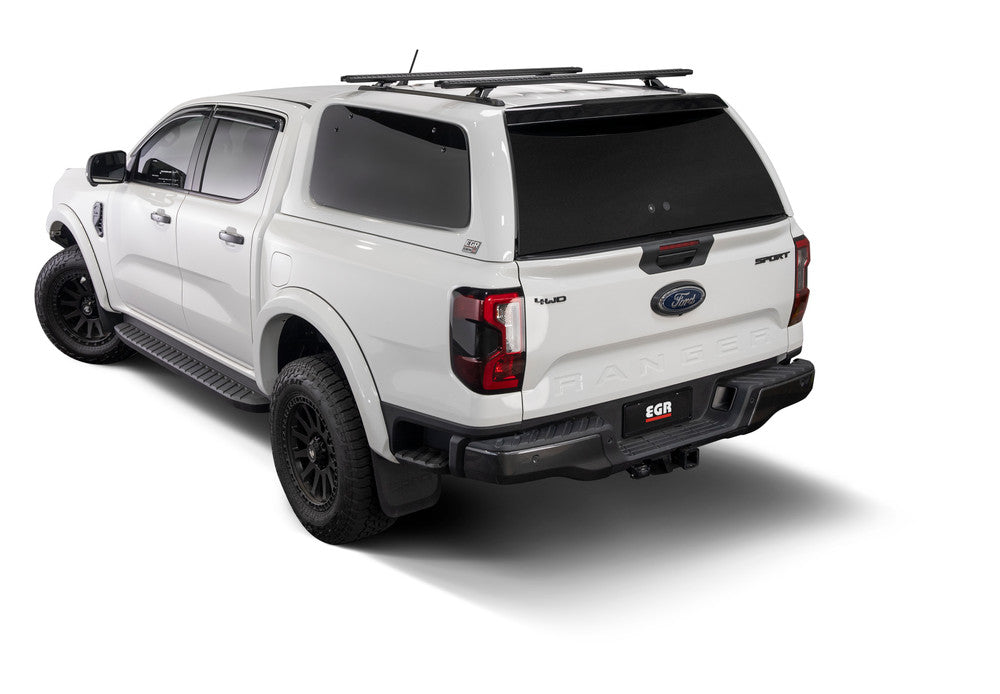

EGRYakima TrimHD crossbars paired with EGR's staggered-height leg system for the GEN3 canopy on the Ford Ranger Next Gen (P703). EGR rate the standard configuration at 80kg dynamic. Adding the EGR Internal Support Kit takes that to 150kg dynamic, and the support kit is sold separately. This is the cheaper way onto the canopy roof for boards, ladders or a light awning.
Read that number before you order. 80kg covers a couple of kayaks and an awning. It does not cover most rooftop tents with two people in them, and that is where this kit gets bought by mistake.
What vehicles does this fit?
| Make | Model | Mounts to | Years | Fit |
|---|---|---|---|---|
| Ford | Ranger Next Gen (P703) | EGR GEN3 canopy roof, as supplied | 2022-Current | Direct fit, 80kg dynamic rating |
| Ford | Ranger Next Gen (P703) | EGR GEN3 canopy roof with the EGR Internal Support Kit | 2022-Current | Direct fit, 150kg dynamic rating |
| Ford | Ranger Raptor Next Gen (P703) | Any | 2022-Current | Not listed for the Raptor |
| Ford | Ranger Next Gen (P703) | EGR Core canopy | 2022-Current | Does not fit |
| Ford | Ranger Next Gen (P703) | Bare tub, hard lid or soft tonneau | 2022-Current | Does not fit |
Key features

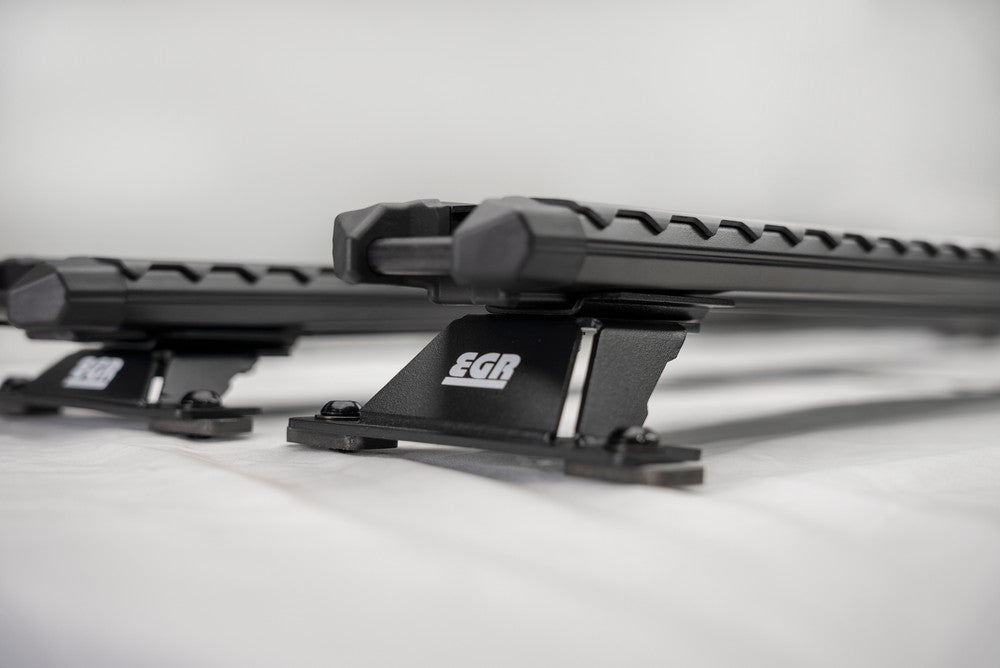

- Yakima TrimHD crossbars on EGR's staggered-height leg system
- 80kg dynamic as supplied, 150kg dynamic with the EGR Internal Support Kit
- Lower cost route onto the GEN3 canopy roof than the full rack kit
- EGR estimate around one hour for DIY installation
- Suits boards, ladders, awnings and light gear
Specifications
| Specification | Detail |
|---|---|
| Crossbars | Yakima TrimHD |
| Legs | EGR staggered-height leg system |
| Rating as supplied | 80kg dynamic (EGR rated) |
| Rating with Internal Support Kit | 150kg dynamic (EGR rated), kit sold separately |
| Installation | Approximately one hour, DIY (EGR estimate) |
| Suits | EGR GEN3 canopy only |
| Part number | 041163 |
Fitting and installation

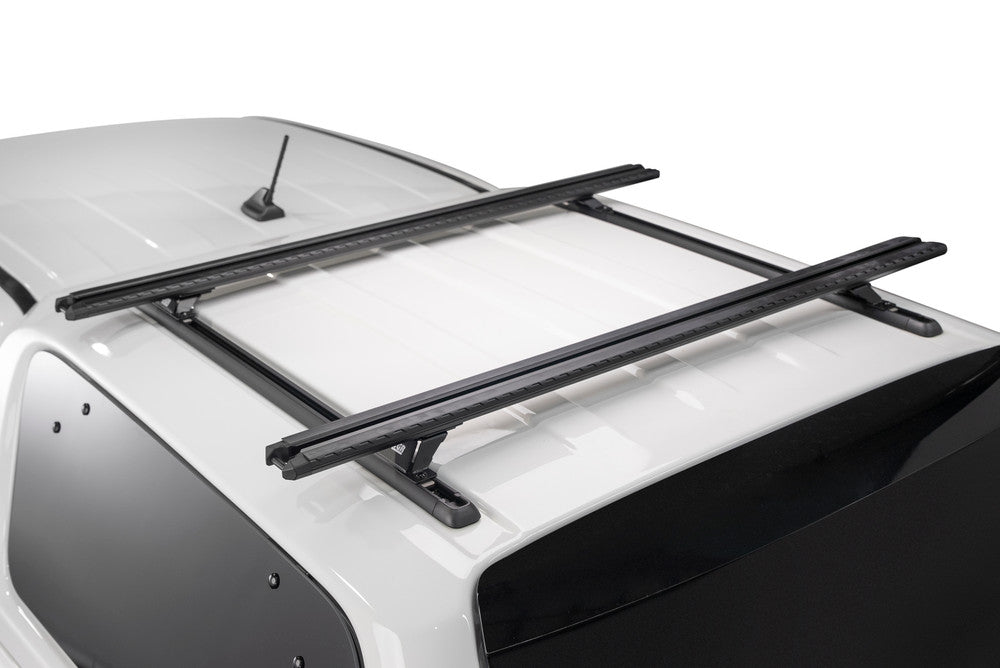

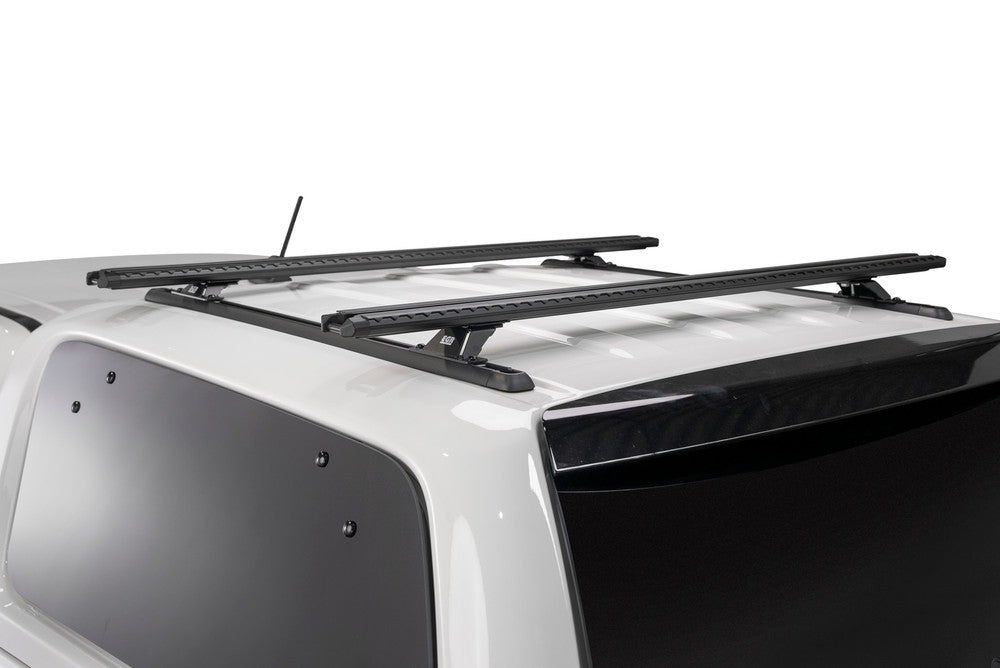

The legs mount to the GEN3 canopy roof and the bars clamp into them. EGR put the DIY install at around an hour. Set the bar spacing to the load before final torque. If you are adding the Internal Support Kit to reach the 150kg figure, fit that first, because it goes in from inside the canopy.
What's included
Included: Yakima TrimHD crossbars, EGR staggered-height legs, fitting hardware.
Not included: canopy, EGR Internal Support Kit, fitting.
Frequently asked questions
Can I put a rooftop tent on this kit?
Not on the 80kg dynamic rating it comes with. Weigh your tent before you assume it fits, because a hard shell tent plus two people will usually put you well past that. Adding the EGR Internal Support Kit lifts the rating to 150kg dynamic, and that is the configuration to order if a tent is the plan.
How is this different from the full GEN3 roof rack kit?
This is bars on legs. The full kit, part RACK0054, is a rack supplied with the heavy-duty internal support frame already included and rated at 150kg dynamic. If you are carrying boards, ladders or an awning, this kit does the job for less. If you are sleeping up there, buy the full kit.
Do I have to buy the support kit separately?
Only if you need to go past 80kg. The kit works as supplied for lighter loads. The Internal Support Kit is a separate part because plenty of buyers never need it, and it is fitted from inside the canopy, so it is easier to install before the canopy fitout goes in.
Why Yakima TrimHD bars?
EGR pair their leg system with Yakima's TrimHD crossbars rather than a house-brand bar, which means the accessory mounts and carriers already made for TrimHD will fit. If you have Yakima gear on another vehicle, check the fitting before you buy a second set.
