Ford Ranger Next-Gen (2022-Current) Core Canopy - EGR

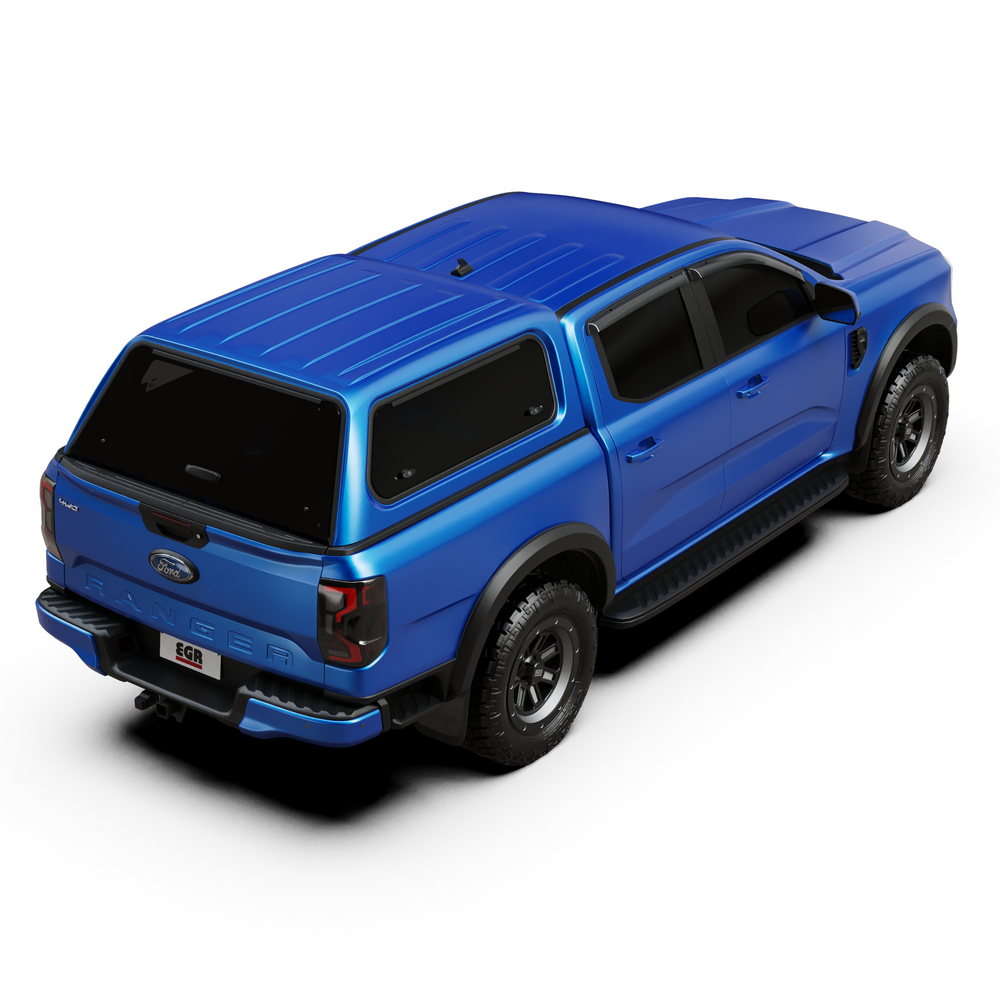

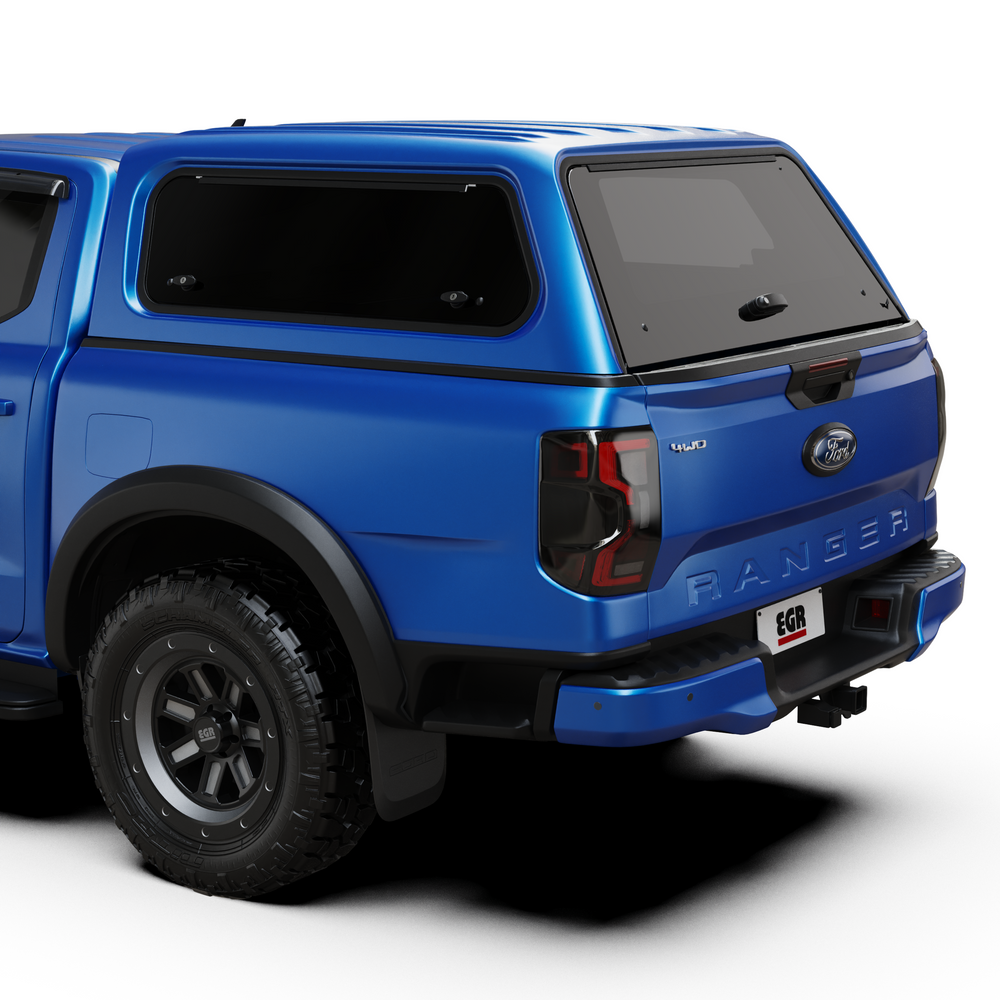

EGRThe EGR Core canopy is built for the Ford Ranger Next Gen (P703) tub. Dual lift side windows, one each side, a front window that folds down, and a rear door with a central handle and slam latches. Designed and manufactured in Australia from ultra-premium UV-stable ABS, and supplied colour-coded in one of five Ford factory colours.

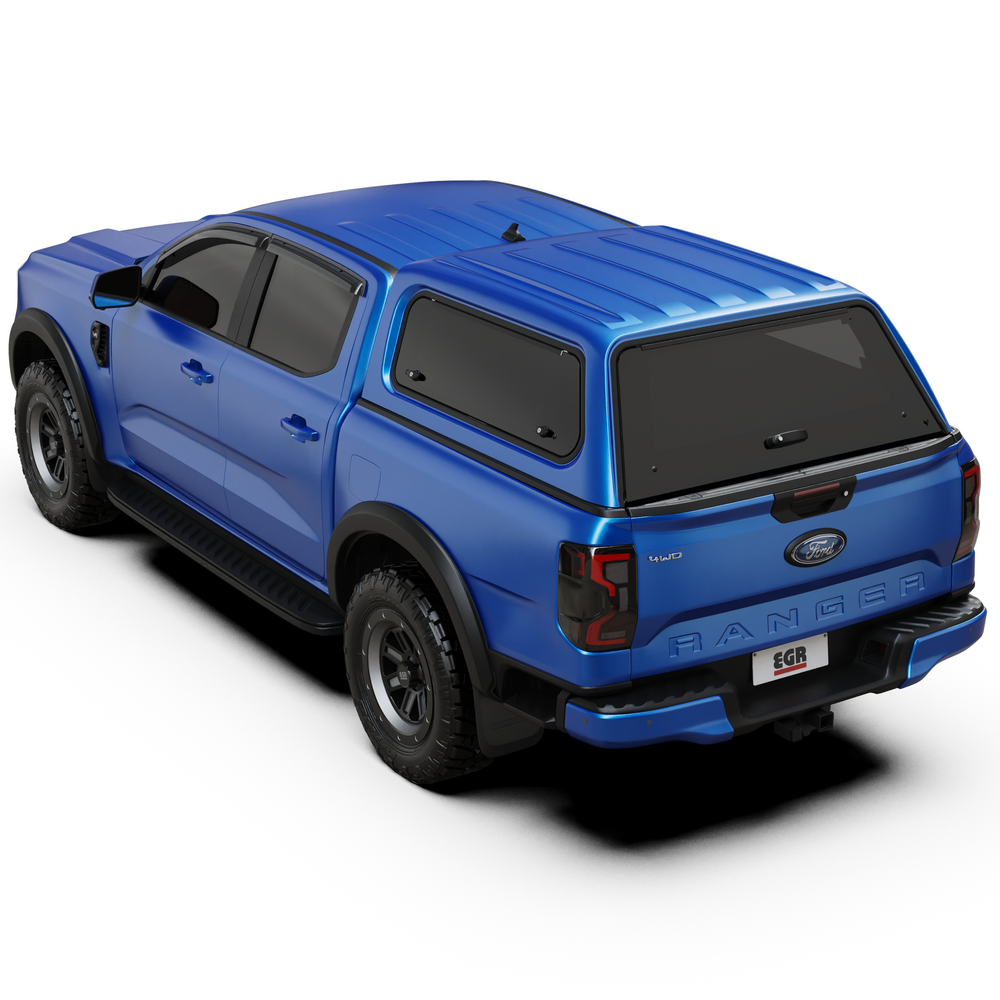

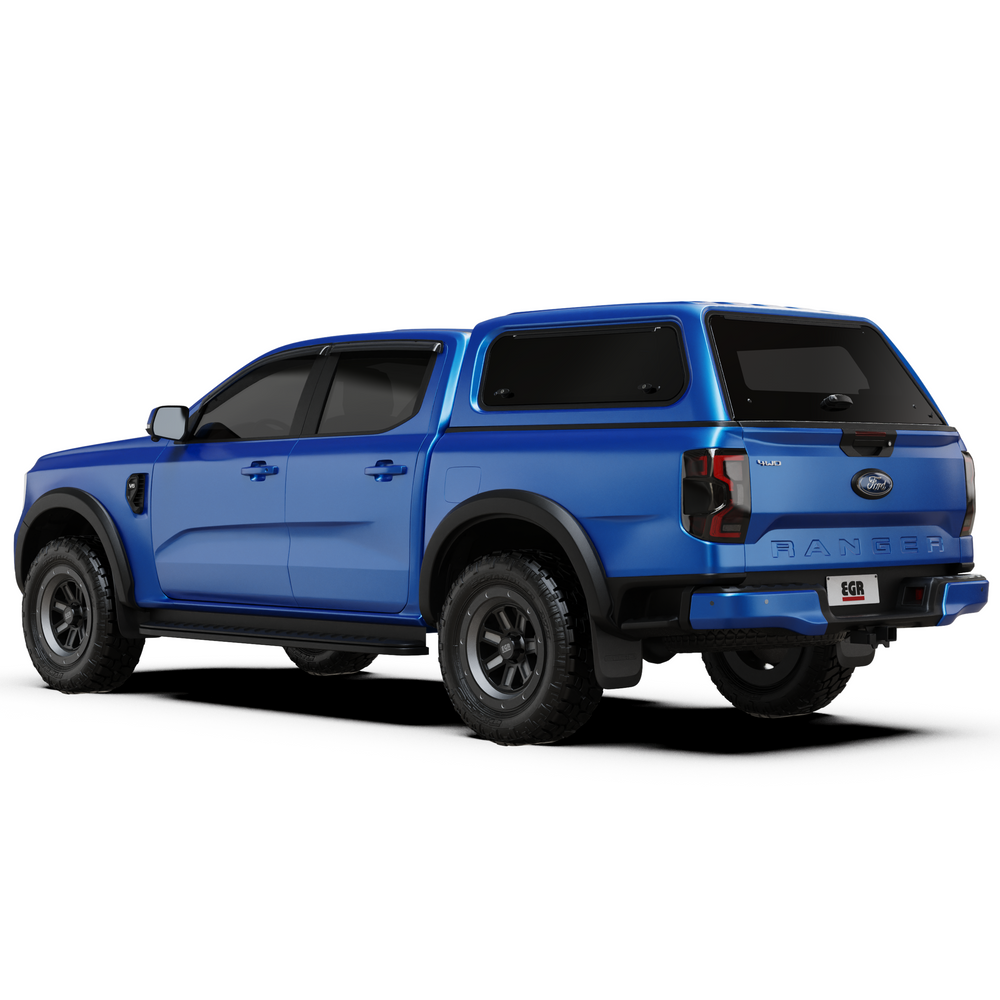

The side windows are frameless and lift on both sides, so you can load from either kerb without walking round the truck. The rear door runs a central handle with slam latches, so you push it shut with a knee when both hands are full instead of lining up a catch. Two keys are supplied for the dual lift windows.
What vehicles does this fit?
| Make | Model | Variant | Years | Fit |
|---|---|---|---|---|
| Ford | Ranger Next Gen (P703) | All variants, including Wildtrak and Platinum | 2022-Current | Direct fit |
| Ford | Ranger Raptor Next Gen (P703) | Raptor | 2022-Current | Not listed for the Raptor |
| Ford | Ranger Super Duty | All | 2025-Current | Does not fit |
| Ford | Ranger PX2/PX3 | All | 2015-2022 | Does not fit |
| Ford | Everest Next Gen (U704) | All | 2022-Current | Does not fit, no tub |
Key features
- Dual lift side windows, one each side, frameless, two keys supplied
- Front window folds down for access to the rear cab glass
- Rear door with a central handle and slam latches
- Ultra-premium UV-stable ABS, robotically trimmed
- Australian made and manufactured
- Colour-coded as standard in five Ford factory colours, no custom paint option
Specifications
| Specification | Detail |
|---|---|
| Material | Ultra-premium UV-stable ABS |
| Side windows | Dual lift, one per side, frameless |
| Front window | Folds down |
| Rear door | Central handle, slam latches |
| Finish | Colour-coded, five factory colours only |
| Custom paint | Not available on the Core |
| Origin | Designed and manufactured in Australia |
| Warranty | 3 years (EGR canopy warranty, excludes glass) |
| Lead time | Made to order, 5 to 10 business days, plus 1 to 3 weeks delivery |
Colours and part numbers
| Colour | Ford code | Part number |
|---|---|---|
| Arctic White | YFU | 041463B |
| Shadow Black | ZAT | 041599B |
| Blue Lightning | 4E3 | 041600B |
| Aluminium | YHT | 041601B |
| Meteor Grey | YHR | 041602B |
All five colours are the same price. Listed here in Arctic White, part number 041463B. Message us for any of the other four and we will swap the order over.
Fitting and installation
Fitting is not included. EGR charge $350 to fit at their own fitment centres. Check the paint and the glass on delivery, because EGR require any defect to be reported in writing within 7 days of goods being received.
What's included
Included: canopy shell colour-coded to one of the five factory colours, dual lift side windows with two keys, front window, rear door with central handle and slam latches, clamps and seals.
Not included: fitting, internal fitout, roof rack, roof bars, custom paint.
Frequently asked questions
What colours can I get the Core in?
Five, and only five. Arctic White YFU, Shadow Black ZAT, Blue Lightning 4E3, Aluminium YHT and Meteor Grey YHR. There is no custom paint option on the Core, so if your Ranger is a colour outside that list, the GEN3 is the model to look at instead. Message us with your paint code if you are unsure which is closest.
How long does a Core canopy take to arrive?
EGR build the Core to order and quote 5 to 10 business days, then 1 to 3 weeks for delivery. If you have a trip booked, work backwards from that date before you order and we will tell you where your build sits.
Can I fit a roof rack to it?
Not the EGR GEN3 rack kits. Those are built around the GEN3 canopy roof and its mounting points, and neither will mount to a Core. If a roof load is part of the plan, tell us what you intend to carry before you order the canopy, because that answer may point you at the GEN3 instead.
What is the difference between the Core and the GEN3?
EGR position the Core as a practical option for secure enclosed storage and dependable everyday use in a straightforward canopy setup. The GEN3 is positioned around versatility and a wider option list, and it carries the roof rack support frame and the lined interior. If you want a well built canopy in a factory colour without the extras, the Core does that job.
