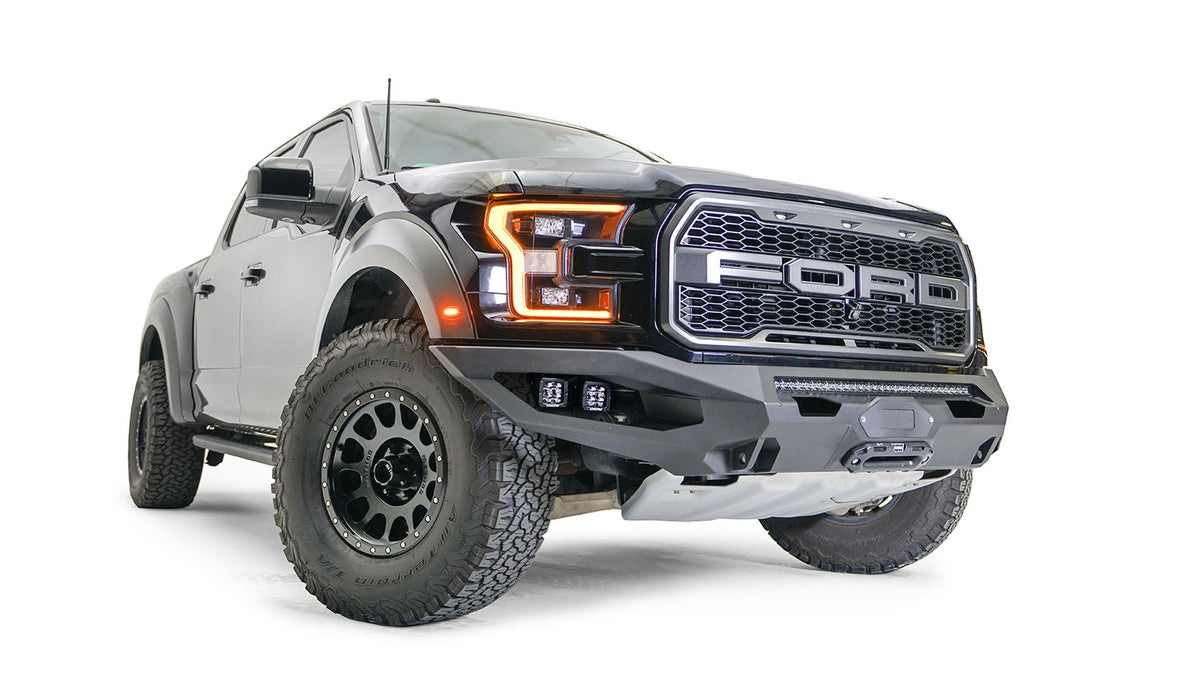

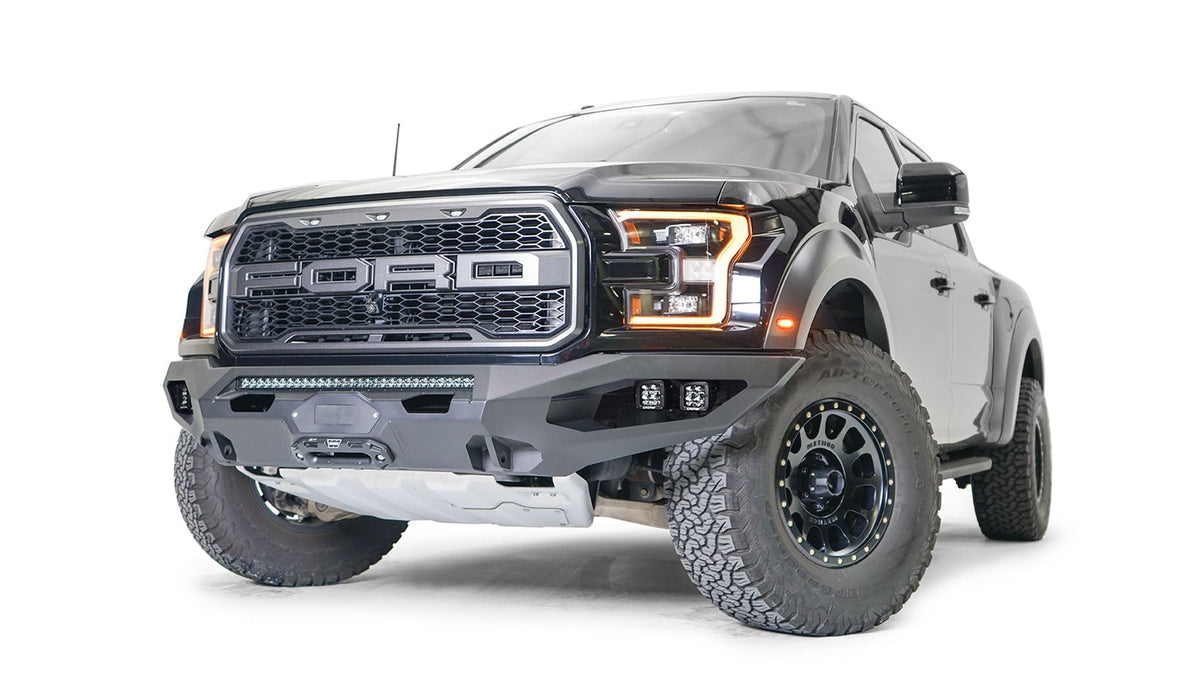

Ford F-150 Raptor (2017-2020) Matrix Front Bumper - Fab Fours
Fab Fours' slim steel front bumper for the 2017-2020 Ford F-150 Raptor. Roughly 52kg by Fab Fours' own figure, built from 3/16 inch plate steel, and winch ready for a 9,000lb winch without adding a long overhang out…
Overview
- 3/16 inch plate steel, made in the USA
- Combines the winch capacity of the Premium winch bumper with the slim profile of the Vengeance series
- Opens up tyre clearance, which matters on a Raptor running larger than factory
- Centre mount suits a single row 30 inch light bar, or a double row if you skip the winch
- Side slots and tabs for up to four cube lights, tested by Fab Fours with Rigid D-series 3x3 cubes
- Integrated D-ring mounts, sensor holes and removable light inserts

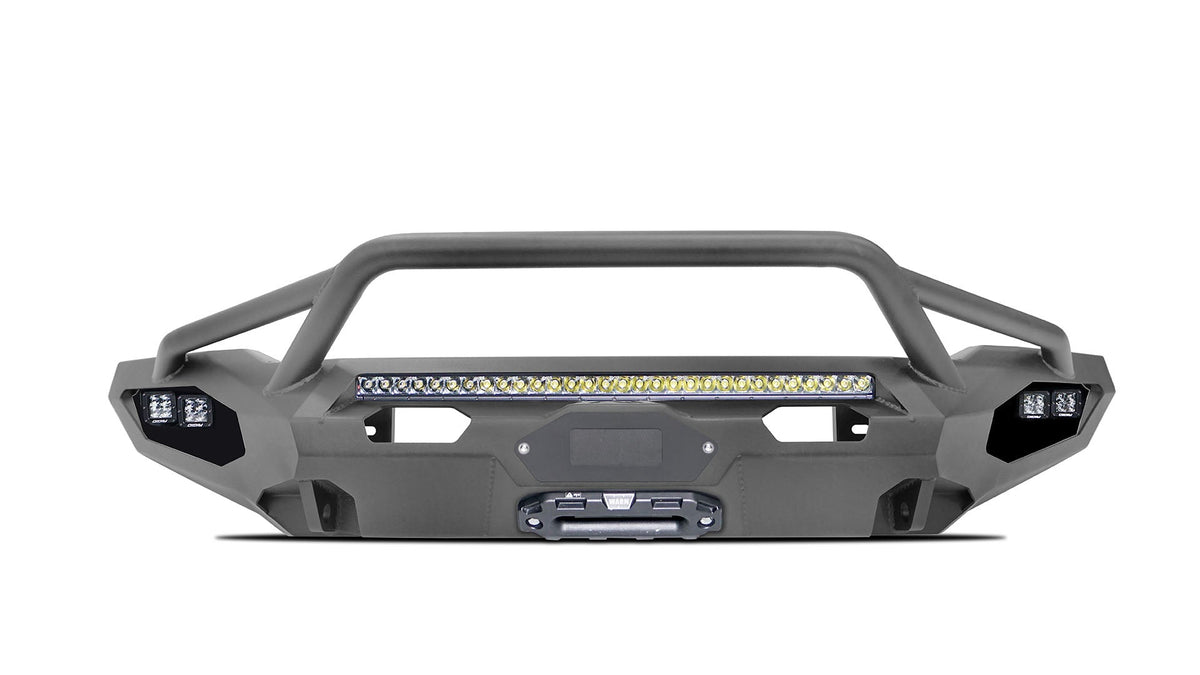

- Two options: No Guard is the bare bar, Pre-Runner Guard adds a centre hoop
- Brand
- Fab Fours
- Product type
- Bull Bar
- SKU
- FF17-X4351-1
Fitment and delivery
Check the fitment details in the product description against your vehicle before ordering. Model, year, variant and existing modifications can affect fitment.
Product details
What to know before ordering
Description, fitment and specifications
Fab Fours' slim steel front bumper for the 2017-2020 Ford F-150 Raptor. Roughly 52kg by Fab Fours' own figure, built from 3/16 inch plate steel, and winch ready for a 9,000lb winch without adding a long overhang out front.
What vehicles does this fit?
| Make | Model | Variant | Body | Years | Fit |
|---|---|---|---|---|---|
| Ford | F-150 Raptor | Gen 2 | All cab styles | 2017-2020 | Direct fit |
| Ford | F-150 Raptor | Gen 3 | - | 2021-2023 | Does not fit |
| Ford | F-150 (non-Raptor) | All variants | - | 2021-2022 | Does not fit |
Fab Fours state the bar is not suitable for vehicles running a body lift.
Key features
- 3/16 inch plate steel, made in the USA
- Combines the winch capacity of the Premium winch bumper with the slim profile of the Vengeance series
- Opens up tyre clearance, which matters on a Raptor running larger than factory
- Centre mount suits a single row 30 inch light bar, or a double row if you skip the winch
- Side slots and tabs for up to four cube lights, tested by Fab Fours with Rigid D-series 3x3 cubes
- Integrated D-ring mounts, sensor holes and removable light inserts
- Two options: No Guard is the bare bar, Pre-Runner Guard adds a centre hoop
Specifications
| Construction | 3/16 inch plate steel (approximately 4.8mm) |
| Weight | Approximately 52kg |
| Finish | Black powder coat |
| Winch | 9,000lb rated mount (approximately 4,080kg) |
| Light mounting | Single row 30 inch centre bar, or double row without a winch, plus side cube light slots and tabs |
| Warranty | 24 months (Fab Fours) |
| Part numbers | FF17-X4351-1 (No Guard), FF17-X4352-1G (Pre-Runner Guard) |
Sensor and safety system compatibility
The bar has integrated D-ring mounts and sensor holes, and Fab Fours state it accommodates the OE front camera. They note minor camera interference with the Pre-Runner Guard fitted, so if you rely on the front camera the No Guard is the version to buy. Frontal protection is a regulated fitment in Australia and Fab Fours build to US standards. NXG make no compliance claim of our own.
What's included
- Matrix front bumper in your chosen guard configuration
- Removable light inserts
Not included: winch, winch control box relocation kit, lights and fitting.
Frequently asked questions
How much does it weigh?
Approximately 52kg by Fab Fours' own figure. That is a real number to plan around, because it hangs ahead of the front axle and a winch adds another 20kg or so on top. Factor both into your front spring choice if the truck is already carrying weight up front.
Will it fit a 2021 or later Raptor?
No. The Gen 3 Raptor from 2021 has a different front end to the 2017-2020 Gen 2. Fab Fours make a separate Matrix bumper for it, part number FR21-X5351-1, which we list under the 2021-2023 Raptor.

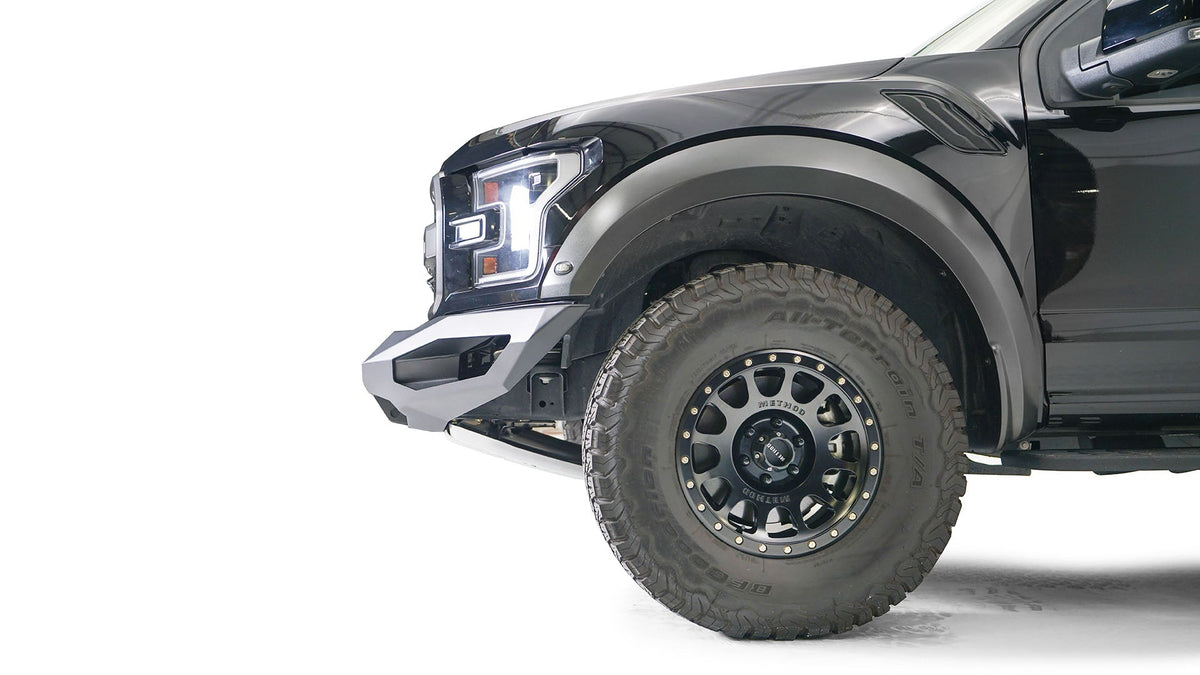

How much tyre clearance does it give back?
Fab Fours state the Matrix provides far more tyre clearance than the factory bumper, which is the reason Raptor owners running larger than factory tyres go looking for it. Tell us your tyre size and we will talk through what else you may need.
Can I run it with a body lift?
No. Fab Fours state the bar is not suitable with a body lift, because a lift moves the body relative to the chassis mounts the bumper bolts to. A suspension lift is a different question, so tell us what the truck is running.
