Ford F-150 (2021-2024) Diablo Bull Bar (Full Guard) - VIKOR

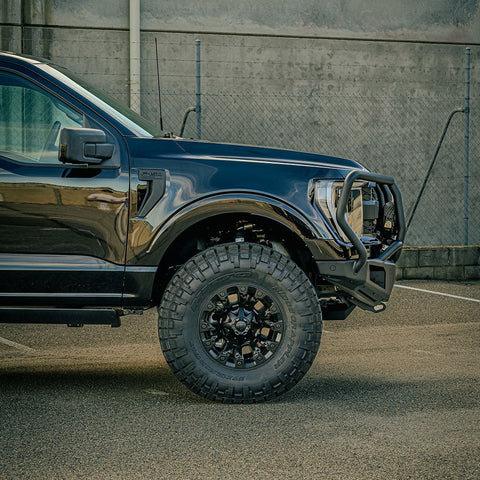

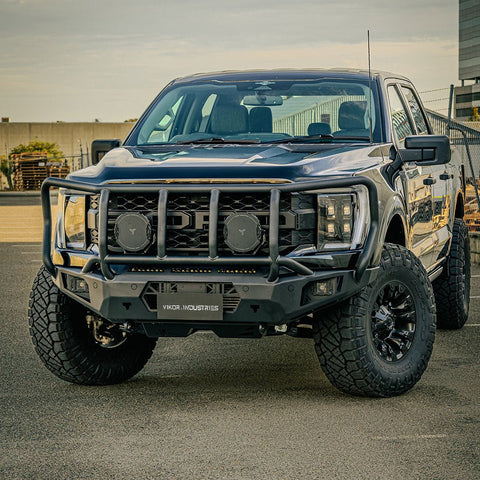

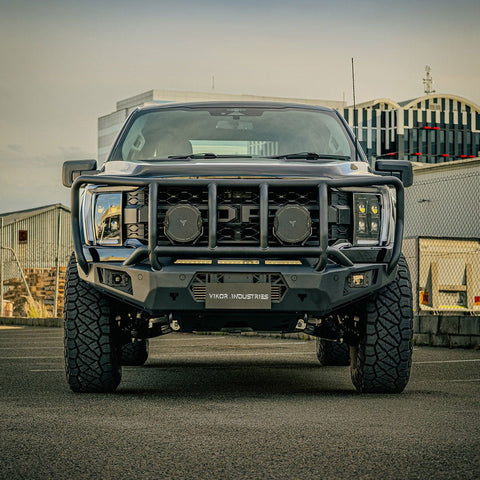

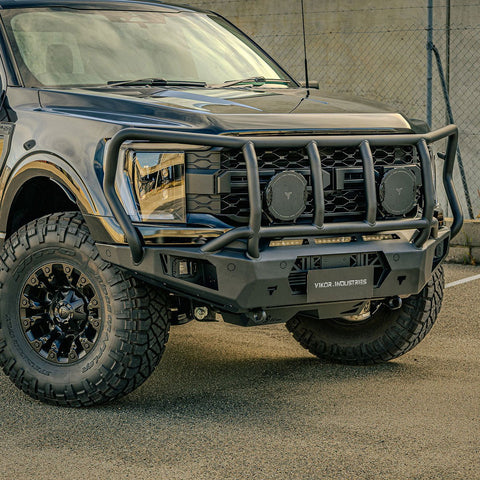

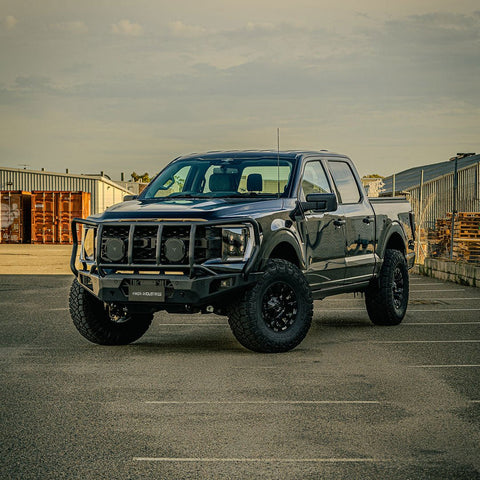

VIKOR INDUSTRIESA full wrap-around alloy bull bar for the pre-facelift Ford F-150 (2021-2024), covering the grille, headlights and bumper. Built from 5mm aluminium over a steel winch cradle and reinforced brackets, it weighs around 60kg and comes finished in VIKOR's Luxe Matte Black powdercoat with VKX Cube LED lights already fitted.
What vehicles does this fit?
| Make | Model | Variant | Body | Years | Fit |
|---|---|---|---|---|---|
| Ford | F-150 (pre-facelift) | All variants except Raptor | All cab styles | 2021-2024 | Direct fit |
| Ford | F-150 (facelift) | - | All cab styles | 2024.5+ | Does not fit - different bumper and grille geometry |
| Ford | F-150 Raptor | - | All cab styles | All years | Does not fit - the Raptor front end is wider |
The F-150 front end changed part way through 2024, which is why it is written as MY2024.5 rather than a clean model year. Order against your build date rather than the model year on the paperwork.
Key features
- Full guard design covering grille, headlights and bumper
- 5mm aluminium with a steel winch cradle and reinforced brackets, approximately 60kg
- Integrated VKX Cube LED lights, Midnight or Performance edition
- Winch cradle sized for the VIKOR Rescue VI 12,000lb winch
- Integrated tow hooks and two high-lift jacking points
- High airflow face so the bar does not choke the radiator
- Foldable number plate bracket
- VIKOR Luxe Matte Black powdercoat
Weight is the reason to run alloy on a truck this size. There is already a lot of mass over the front axle, and a steel bar of the same coverage drops the nose enough to change the ride and push you toward a bigger lift to correct it. The Full Guard is the heaviest of the three Diablo bars at around 60kg, because it is the only one that wraps the headlights.
Specifications
| Material | 5mm aluminium, steel winch cradle and reinforced brackets |
| Weight | Approximately 60kg |
| Finish | VIKOR Luxe Matte Black powdercoat |
| Style | Full guard, full bumper replacement |
| Winch | Cradle sized for the VIKOR Rescue VI 12,000lb winch, sold separately |
| Testing | VIKOR state the bar is ADR and airbag tested |
| Fitment | Ford F-150, 2021-2024 (pre-facelift) |
| Part number | VDBB3F150-21 |
Sensor and safety system compatibility
Depending on variant, an F-150 runs front parking sensors, a 360 camera, radar cruise and AEB. VIKOR state the Diablo bars work with parking sensors, cameras and adaptive cruise. Frontal protection is a regulated fitment in Australia and VIKOR state this bar is ADR and airbag tested. NXG make no compliance claim of our own.
What's included
- Diablo Full Guard bull bar in Luxe Matte Black
- Integrated VKX Cube LED lights, Midnight or Performance edition
- Foldable number plate bracket
- DIY fitting instructions
Not included: winch, 30in VK301 LED light bar, aerial mounts and fitting.
Frequently asked questions
Will it fit a 2024.5 or later F-150?
No. The facelift changed the bumper and grille geometry. Send us the build date off the compliance plate and we will match the bar to it.
Full Guard, Pre-Runner or No Loop?
Full Guard wraps the headlights and grille and is the most protection of the three, at around 60kg. Pre-Runner is the open-face bar with a single centre hoop, around 50kg. No Loop is the same bar without the hoop. Coverage and weight go together, so pick against how you actually use the truck.
Does it take a winch?
Yes. The steel cradle is sized for the VIKOR Rescue VI 12,000lb winch. The winch is not included.
What are the VKX Cube lights?
Two integrated cube LEDs supplied with the bar, in either Midnight or Performance edition. The 30in VK301 LED light bar is a separate optional upgrade and comes with its own wiring harness.
